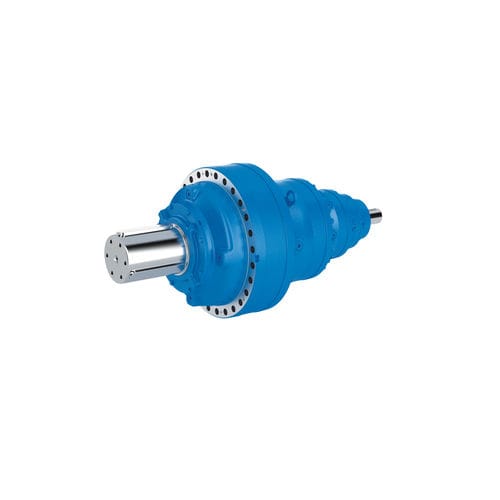

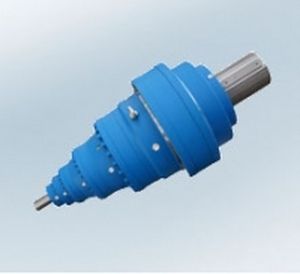

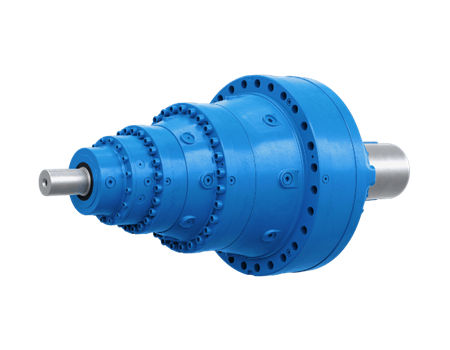

The planetary gearboxes are designed with the help of the most advanced technologies, exploiting the experience gained in all the most severe applications. A complete range of gearboxes, suitable for every type of product in the industrial field.

Planetary gearboxes are used in almost all fields of use that require high torques, peak bearing capacity, high transmission ratio, high efficiency and lifetime, small dimensions and weights.

FEATURES

1, 2, 3, 4 reduction stages for both coaxial and right angle units, 5 and 6 stages under request
Modular design, with multi-optional executions
Suitable to be equipped with NEMA, hydraulic & IEC motors
External gear pair made of casehardened and hardened steel; internal gear made from nitride steel
Cylindrical spur gear with ground profile and flank modification
GLEASON spiral bevel gear pairs with ground profile
Very compact size and reduced mass of gearbox
Wide range of accessories and non-standard designs
Lower backlash, enhanced stiffness and heavy duty bearing
Improved lubrication system
Wide range of hydraulic brakes

BENEFITS

Easy and functional flange, foot, or shaft-mounting design
High torque transmitted
Extended range of transmission ratios and output speeds available

Parameter Name	Parameter Value
Type	planetary bevel
Shaft orientation	coaxial
Torque (Nm)	10000 - 10000
Performance	high-torque
Applications	for heavy-duty applications transmission
Other characteristics	industrial
