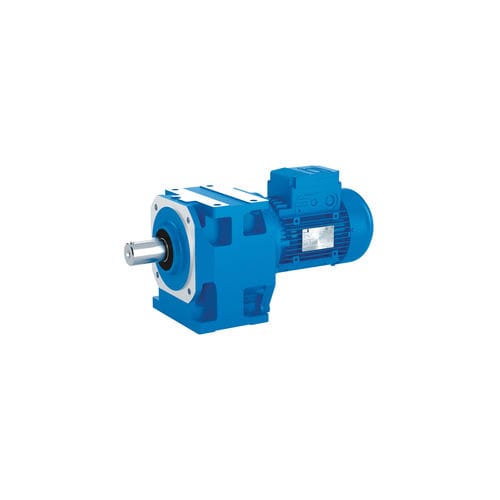

Gearboxes and gearmotors with universal fixing casing and reinforced output supporto. Possibility to fit big size motors according to IEC standard and square flanges to match servomotors dimensions. High performances and reliability.

FEATURE

Universal mounting with lower/upper feet and B5 flange integral to the housing
Rigid and precise cast iron monobloc housing
Helical toothed gear pairs with ground profile
Wide range of sizes
Final stage pinion with 3 bearings for increased torque capacity

BENEFITS

Longer life
Minimum maintenance requirements
High performance and greater reliability
Strength and reliability for heavy duty applications

Parameter Name	Parameter Value
Type	planetary worm
Shaft orientation	coaxial
Torque (Nm)	10000 - 10000
Performance	high-performance
Other characteristics	rugged universal
Power (W)	90 - 75000
