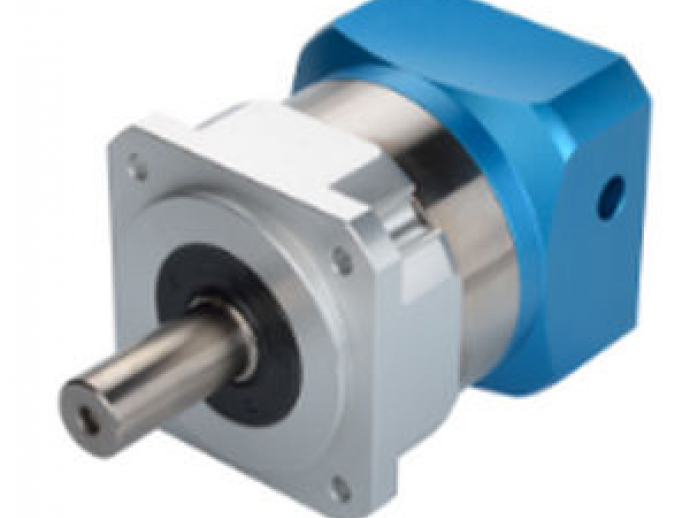

The planetary gearbox has been developed specifically for all application, which is an ideal alternative to our precision series.
There’re ten ( 10 ) different sizes available, from 1.7” to 8.66” ( 42 mm to 220 mm ), within PHT Vertex Precision series Planetary Gearboxes. These can be used for any motors ranging from NEMA 17 to NEMA 42 or bigger than the ranges. The gears used in these planetary gearboxes offer you a reliable, economical choice for your motion control application.

There’re eight ( 8 ) models can be chose for diverse fields of motion control applications. The choices let you select the appropriated backlash option for your application. Precision backlash is as low as 1 arc min maximum. We stock many ratios to match up to our wide range customers in worldwide market, and make a gearbox to fit any motor in as little as 7-10 working days or earlier. Ratios are available from 1:3 to 1:1000 with torque rating up to 10,4 88 in-lbs. ( 167,808 oz.-in ).

Parameter Name	Parameter Value
Type	planetary
Shaft orientation	coaxial
Torque (Nm)	100 - 200
Performance	precision
Rotational speed (rpm)	4000 - 4000
Backlash (°)	0.17 - 0.17 0.2 - 0.2
Gear ratio (unit)	3 - 100
