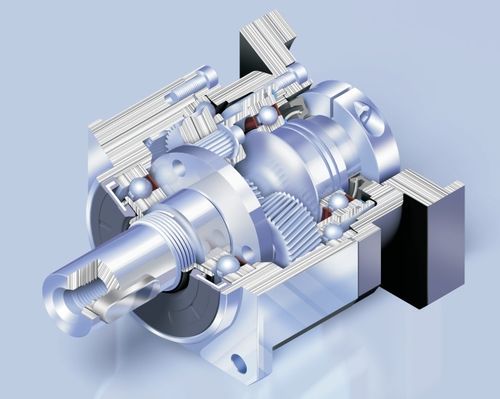

1. True Helical Gear Design
Precision helical gearing increases tooth to tooth contact ratio by over 33% vs spur gearing. The helix angle produces smooth and quiet operation with decreased backlash (less than 1 arc-minutes and ≤ 56dB).

2. Triple split collet with dynamic balanced set collar clamping system
provides backlash free power transmission and eliminates slippage. 100% concentricity allows for smooth rotation and higher input speed capability.

3. Bushing module system design
The unique motor adapter and bushing module system design allows for quick and easy mounting of any motor.

4. A special non-electrolysis Nickel surface treatment

A special non-electrolysis nickel surface treatment on the output housing and black anodized aluminum input adapter are provided for the most extreme environmental conditions.

Parameter Name	Parameter Value
Type	planetary helical
Shaft orientation	coaxial
Torque (Nm)	200 - 500 20 - 50 100 - 200 50 - 100 500 - 1000 1000 - 2000 10 - 20
Performance	precision
Applications	transmission
Other characteristics	compact
Rotational speed (rpm)	2000 - 10000
Backlash (°)	0.02 - 0.02 0.05 - 0.05 0.08 - 0.08 0.12 - 0.12
Gear ratio (unit)	3 - 100
