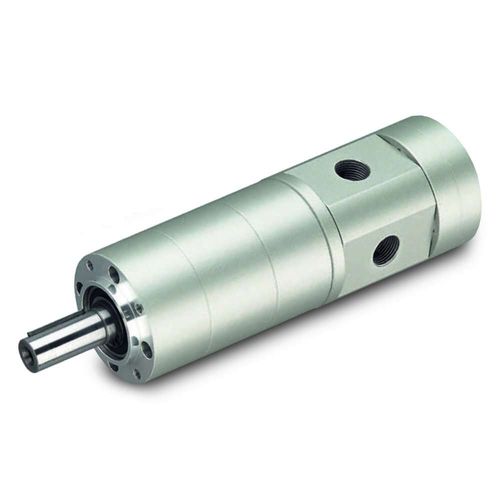

P1V-M is a series of air motors robustness makes it suitable for all normal air motor applications. The range contains five different sizes with power ratings of 200, 400, 600, 900 and 1200 Watts with planetary gearbox and motor made of grey casted iron. The gearbox is of the planetary type, permanently lubricated with grease. The flange mounting is cast as an integral part of the case, and give, together with the foot bracket, plenty of opportunity for simple and robust installation.
The motor and gearbox are built to be extremely strong, making the motors suitable for compact applications. A new design principle has made service activities quicker and easier than for any comparable motor. Servicing involves loosening the screws holding the rear piece to the motor, removing the worn vanes from the back and inserting the new vanes. Unlike traditional air motors, there is no need to fully open the P1V-M for servicing, making the process much easier.

Markets:
• Factory Automation
• Machine Tools
• Packaging Machinery
• Printing & Marking Equipment
• Vehicle Assembly Facilities
• Medical
• Mining
• Oil and Gas
• Food & Beverage
• Industrial Chemical Processing

Features/Benefits:
• Smaller installation dimensions than corresponding electric motors
• Can be loaded until they stall, without damage
• Designed to be able to withstand the toughest heat, vibration, impact etc.
• Can be stopped and started continually without damage
• Weight is several times less than corresponding electric motors
• Suitable for the harshest environments
• Simple design principle makes them easy to service
• Reversible as standard
• The design and the low number of moving parts aids reliability

Parameter Name	Parameter Value
Technology.	rotary vane, planetary gear
Other characteristics	ATEX compact flange lubricated
Torque (Nm)	0.38 - 120
Power (W)	200 - 200 400 - 400 600 - 600 900 - 900
