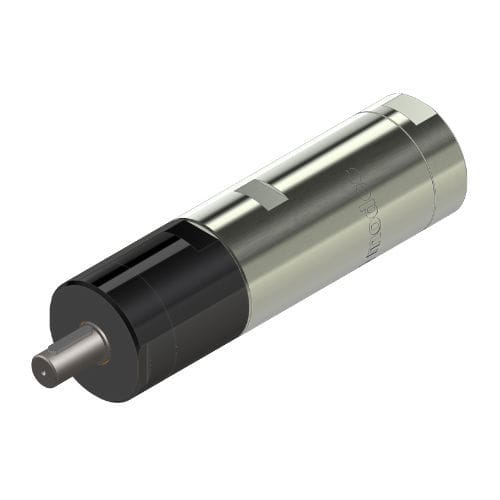

"05" series air motors are the lightest and most compact.

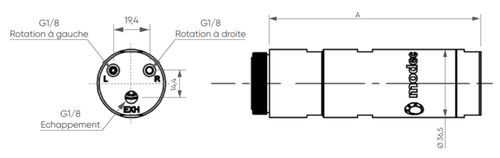

With a 300W power in a 113 x 36,5 mm cylinder weighting half a kilogram only, these motors fit easily in a machine.
Like any of our motors, power and torque are easily controlable by simply adjusting air supply pressure, which allows to use them "at stall" without any additional precaution.
This makes them an ideal tool for cap screwing on bottling lines for example.

Parameter Name	Parameter Value
Technology.	rotary vane, planetary gear
Other characteristics	ATEX compact flange
Torque (Nm)	0.14 - 0.56
Rotational speed (rpm)	8400 - 11400
Power (W)	170 - 300
