Plan achromatic objective lens MPLN series

in Lenses

Plan achromatic objective lens MPLN series
in Lenses

Plan achromatic objective lens MPLN series

in Lenses

About


Our MPLN Plan Achromat lens series is dedicated to brightfield observation and provides excellent contrast and optimum flatness throughout the field of view.

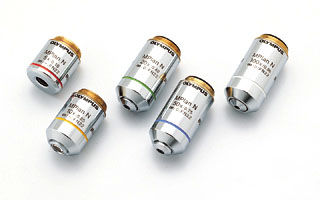

M Plan Achromat - MPLN
• Objective lenses designed for brightfield microscopy applications
• Plan achromat objective lenses provide excellent image flatness up throughout the field of view

Specifications
Magnification [X]: 5
Numerical aperture (NA): 0.1
Working distance (WD) [mm]: 20
Objective Field Number: 22
Immersion medium: Air/Dry
Spring loaded: N/A
Correction collar: N/A
Correction range of correction collar: N/A
Iris: N/A
Correction level of chromatic aberration: Achromat (ACH)
Parfocalizing distance [mm]: 45
Back focal plane (BFP) position: -
Type of screw thread: W20.32X0.706(RMS)
Brightfield(Reflected): Good
Brightfield(Transmitted): Good
Darkfield(Reflected): N/A
Darkfield(Transmitted): N/A
DIC(Reflected): N/A
DIC(Transmitted): N/A
Phase Contrast: N/A
Relief Contrast: N/A
Polarized Light: N/A
Fluorescence (B, G Excitation): N/A
UV Fluorescence (at 365nm): N/A
Multiphoton: N/A
TIRF: N/A
IR: N/A
WLI: N/A
Auto Focus: N/A



PARAMETERS

Parameter Name Parameter Value
Other characteristics
plan achromatic
Focal length
Max.: 700 mm(27.56 in)Min.: 400 mm(15.75 in)
