About
Rexroth Hydraulic Motor
Model
A6VE Series
Replace for

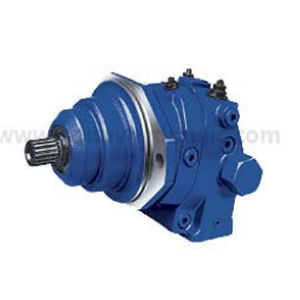

Rexroth A6VE Series hydraulic motor
Displacement
107cc - 250cc/rev
The hydraulic motor A6VE, axial tapered piston bent-axis design, suitable for hydrostatic drives in open and closed circuits. It is widely applied in mobile and industrial applications .Output speed depends on the flow capacity of the pump and the displacement of the motor. The torque increase with the pressure differential between the high and low pressure side and with increasing displacement. And it can be completely interchanged with Rexroth A6VE series hydraulic motor.
Features:
1. Plug-in motor, preferably for installation in mechanical gearboxes
2. Wide control range (can be swiveled over zero), high speeds and high torque
3. Option: Integrated or built-on flushing and boost pressure valves
4. Counterbalance valve integrated into the port plate (A6VE), sizes 107 - 250
5. Totally interchangeable with original Rexroth A6VE series Hydraulic Motor
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Technology |
piston
|
| Other characteristics |
|
| Pressure |
350 bar, 400 bar (5,076 psi)
|
| Rotational speed (rpm) |
2700 - 5600
|
| Torque (Nm) |
|
| Displacement |
Min.: 107 cm³ (3.62 US fl oz)Max.: 250 cm³ (8.45 US fl oz)
|
