About
Protection class IP67
Pipe inspection from Ø 14 mm (inside)
Ventilation pipes, drainage pipes, sewage pipes and much more

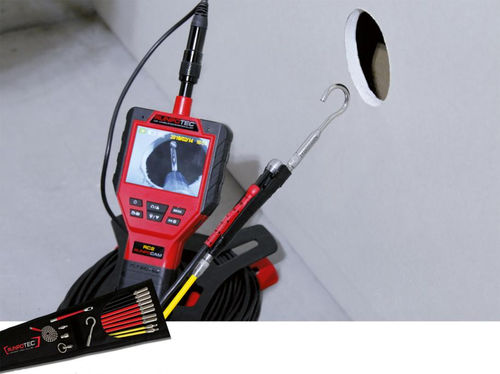

Also for cavity inspection and suspended ceilings
Memory function/documented evidence - Photo (JPG), Video HD (AVI) and Audio
Spool with camera cable can be easily unwound or rewound via the X BOARD series
GF3 Glass fibre rod incl. swivel and kink protection
Integrated digital meter counter

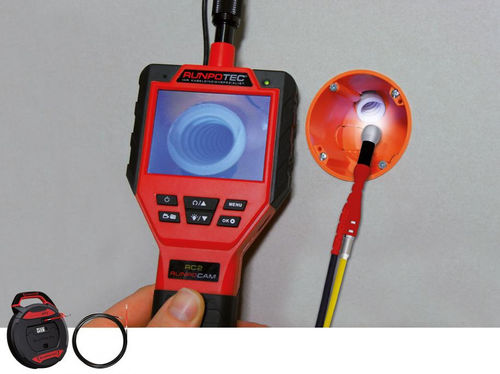

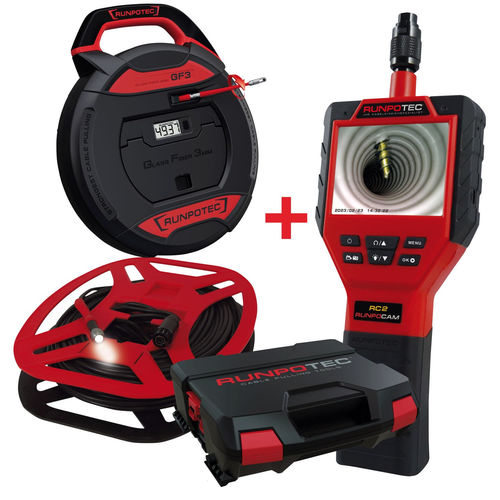

RC2 inspection camera - 30 m with reel incl. monitor bracket. In W-Boxx system case - compatible with Sortimo. Extra large 3.5" TFT LCD 16M colour display, protection class IP 67, rechargeable battery operation up to 6 hours. Evidence preservation/storage function: photo, video and audio. CAMERA HEAD with 6 integrated LEDs, enclosed in robust stainless-steel head (Ø 13 mm) with RTG Ø 6 mm internal thread. Compatible with all RUNPOTEC products with RTG Ø 6 mm thread (GF3, RUNPOSTICKS, RP 1, fibre glass rod Ø 4.5 - 6 - 7.5 - 9 - 11 - 15 mm).

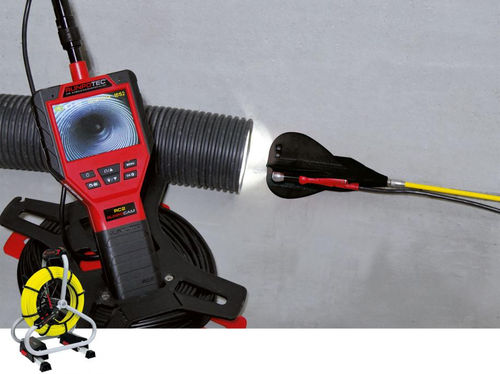

Optimal field of application: For pipe inspections over long distances up to 30m. From 14 mm inner diameter (corresponds to empty pipe Ø 20mm), but also for larger pipe cross-sections (ventilation systems, drainage, sewage pipes,etc.:). In combination with the RUNPOSTICKS excellent for cavity wall inspections, suspended ceilings (above high ceiling profiles), manholes and underfloor ducts, maintenance and system inspections. +

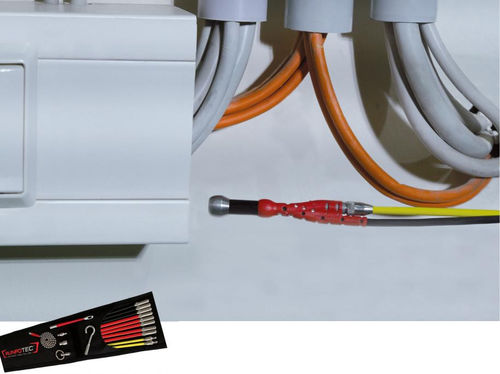

GF3 - Cable pulling tool incl. digital meter counter, glass fibre rod Ø 3 mm with kink protection ending joint (internal thread RTG Ø 6 mm) and patented guiding head with twist adjustment (2 x external thread RTG Ø 6 mm). Stowed in a shock-proof plastic box.
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Applications |
for pipe inspection
|
| Technology |
digital
|
| Function |
inspection
|
| Other characteristics |
|
