INSPECTION CAMERA
for pipe inspectionen for long distances up to 50 m

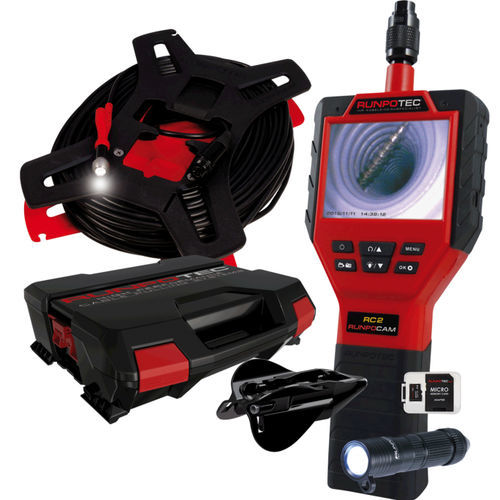

RC2 inspection camera with cable lengths of 10 m, 30 m and 50 m with reel incl. monitor bracket. In W-Boxx system case - compatible with Sortimo. Extra large 3.5" TFT LCD 16 m colour display, protection class IP67 (Camera head and cable), battery operation up to 6 hours. Evidence preservation/storage function: photo, video and audio. Camera head with 6 integrated LEDs, enclosed in robust stainless steel head (Ø 13 mm) with RTG Ø 6 mm internal thread. Compatible to all RUNPOTEC products with RTG Ø 6 mm thread (GF 3, RUNPOSTICKS, RP 1, fiberglass rod Ø 4.5 - 6 - 7.5 - 9 - 11 - 15 mm).
Optimal field of application: For pipe inspections over long distances of up to 50 m. As of 14 mm inner diameter (corresponds to empty pipe Ø 20 mm), but also for larger pipe cross-sections (ventilation systems, drainage systems, sewage pipes etc.). In combination with the RUNPOSTICKS, excellent for cavity wall inspections, suspended ceilings (above high ceiling profiles), manhole and underfloor ducts, maintenance and system inspections.
Scope of supply: 1 x RC 2 inspection camera with cable 10 m incl. reel, 1 x RUNPOTEC system case, 1 x RG 7 RUNPOGLIDER with front thread, 1 x systemglider, 1 x high-performance 320 lumen LED-lamp, 1 x micro Memory Card 8 GB, 1 x magnet fishing set, 1 x connecting thread set RTG Ø 6 mm (3-parts), 1 x fishing hook, 1 x flexible attachment 12 cm, 1 x USB cable 1,5 m, 1 x USB Euro power plug 230 V, 1 x thread attachment RC 2
ADVANTAGES
• Protection class IP67
• Pipe inspection from Ø 14 mm (inside)
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Applications |
for pipe inspection
|
| Technology |
digital
|
| Function |
inspection
|
| Spectrum |
full-color
|
| Interface |
USB
|
| Other characteristics |
|
