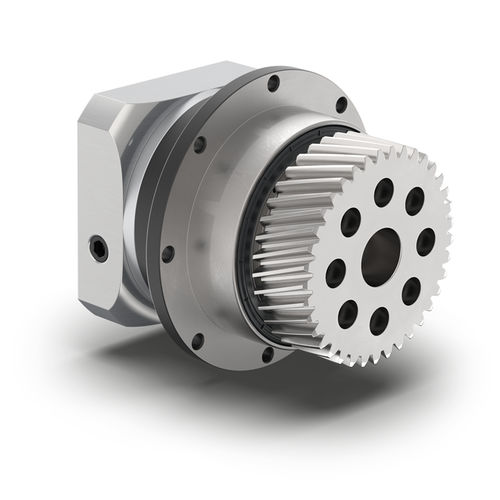

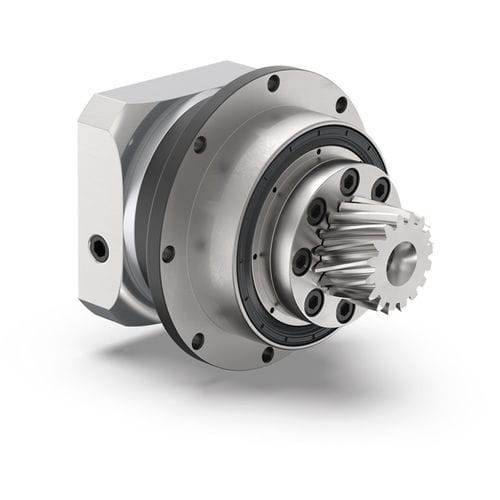

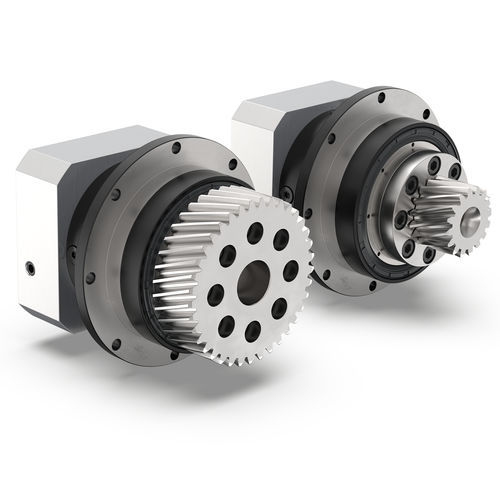

The integrated gearbox/pinion combination provides the best technical coordination for rack and pinion drives. Numerous solution options provide high dynamics and high load-bearing capacities at the same time because of the precision gearing.

Thanks to its standardized flange interface, our PSFN can be installed easily and reliably. Our Neugart-designed helical teeth makes additional noise absorption measures absolute. Thanks to its high tilting moment, you may demand the utmost from this precision planetary gearbox.

Parameter Name	Parameter Value
Type	planetary helical
Shaft orientation	coaxial
Torque (Nm)	200 - 500 100 - 200 20 - 50 50 - 100 500 - 1000 1000 - 2000 2000 - 5000
Shaft configuration	pinion shaft
Number of stages	single-stage dual-stage
Performance	high-precision high-performance low-noise high-efficiency low-backlash high-torque maintenance-free high-power high-rigidity high load capacity high-speed
Applications	for rack-and-pinion drives
Other characteristics	compact modular with flange for machine tools mechanical transmission
Gear ratio (unit)	4 - 100
