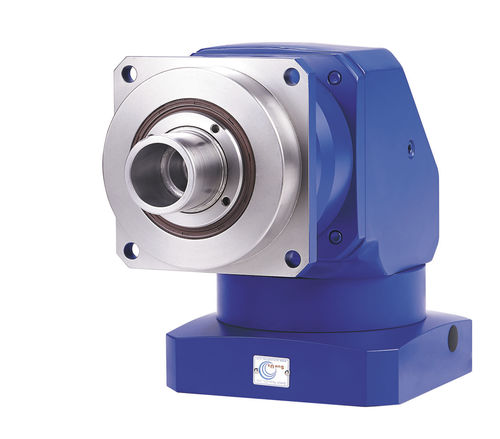

HGR-series use Spiral bevel gear and precision grinding gears, smooth teeth surface, and high accuracy. High input speed. High strength and lightweight aluminum casing.

Characteristic:

1. Low gear backlash

Micro backlash: one stage ≤ 2 arcmin; two stage ≤ 4 arcmins.
Reduced backlash: one stage ≤ 4 arcmins; two stage ≤ 6 arcmins.
Standard backlash: one stage ≤ 6 arcmins; two stage ≤ 8 arcmins.

3. High Efficiency
One-stage 97%, Two-stage 94%

3. Affording huge radial and axial load.
Using high-quality taper roller bearing to strengthen the radial and axial load.

Parameter Name	Parameter Value
Type	spiral bevel
Shaft orientation	right angle
Torque (Nm)	200 - 500 100 - 200 500 - 1000 1000 - 2000 2000 - 5000

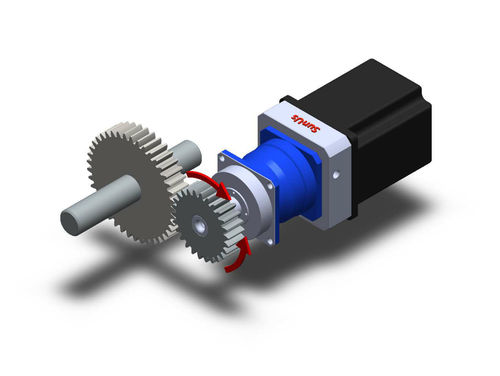

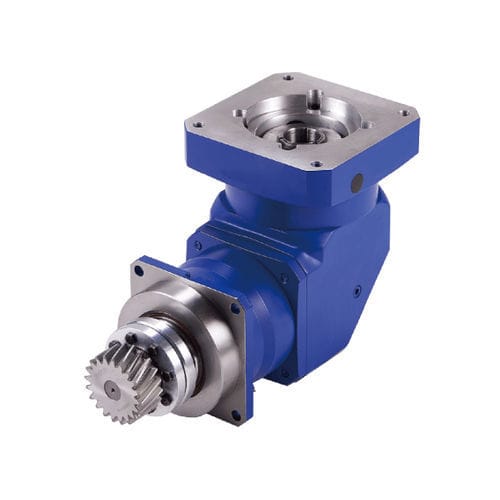

Shaft configuration	pinion shaft
Number of stages	single-stage two-stage
Performance	high-precision high-performance low-noise low-backlash high-efficiency high-torque maintenance-free for heavy loads high-rigidity high-speed high-capacity

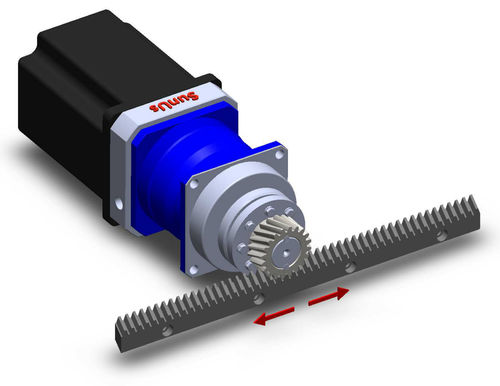

Applications	for servo motors for industrial applications for rack-and-pinion drives for machines for lathes
Other characteristics	compact industrial modular aluminum for machine tools high-quality
Rotational speed (rpm)	2000 - 4500
Backlash (°)	0.03 - 0.13
