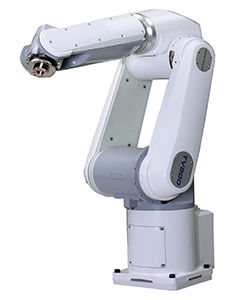

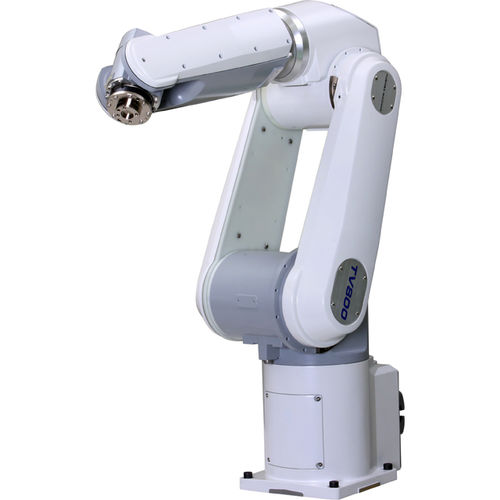

The TV800 has a total arm length of 800mm, a reach of 892mm and a composite maximum speed of 8.06 metres per second.

The robot has a maximum cycle time of 0.4 to 0.5 seconds, repeatability of ±0.02mm and a maximum payload of five kilograms.

The new six axis robot uses an absolute position detection system, with a robust AC motor at its heart.

Features and benefits
- 6-Axis Vertically articulated arms
- Ideal for machine loading/unloading and assembly applications

＊1： Acceleration rates are limited depending on motion patterns, payload mass, and offset value.
＊2： Under rated load.
＊3： Continuous operation of standard cycle motion pattern is not possible beyond the effective load ratio. (Horizontal 300 mm, vertical 25 mm, round-trip, course positioning)
＊4： When the environment temperature is constant.

Parameter Name	Parameter Value
Type	articulated
Number of axes	6-axis
Function	for assembly pick-and-place loading unloading
Mounting	floor-mounted ceiling-mount
Application domain	for the food industry for the electronics industry for the pharmaceutical industry for the plastics industry
Other characteristics	high-speed
Payload (kg)	5 - 5
Reach (mm)	892 - 892
Repeatability (mm)	0.02 - 0.02
Speed (mm/s)	8100 - 8100
Weight (kg)	45
Length (mm)	380 - 1000
