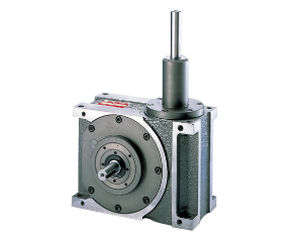

This handler uses a large diameter roller gear cam with a groove cam on the face of the cam for additional flexibility with schemes and wider oscillating angles.
BACK TO TOP
Features
Wide Range of Product Sizes
5 models available, from small to medium size units.
Extremely Flexible Design
Max lift: 20 to 70 mm, Max oscillating angle: 180°
Flexible Mounting Positions
Index mounts in any position with gearmotor mounting on either side of the index.
BACK TO TOP
Typical Applications
Conveying mechanism in manufacturing equipment for CDs and DVDs
Conveying mechanism in manufacturing equipment for automotive parts
Conveying mechanism in pharmaceutical manufacturing equipment, such as ampules.
Conveying mechanism for various automatic machinery

Parameter Name	Parameter Value
Options	pick-and-place
