PICK AND PLACE - FREELY PROGRAMMABLE

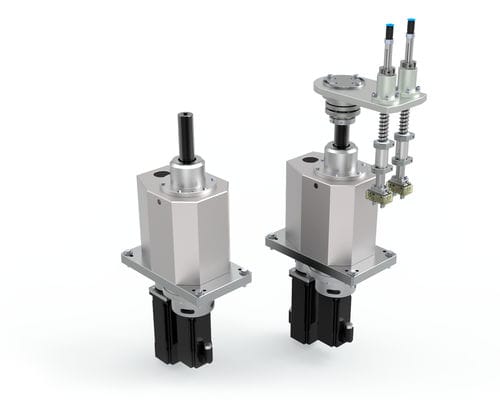

The new MCR series of servo pick & place are designed for industrial automation applications requiring fast and accurate positioning. MCR are programmable pick & place handling systems for automation processes where the output shaft rotates and lifts to properly manipulate the components. The two servo motors that drive the MCR also provide the flexibility to satisfy a broad range of different motion requirements. MCR series provides superior performance compared to other equivalent products on the market:
• Ensure a high level of accuracy while maintaining fast cycle rates
• Move heavyweight parts with excellent accuracy & repeatability
• Reliable performance for 24/7
• Freely Programmable positioning
• Max Payload: 20 kg
• Max. vertical stroke: 100 mm
• Multiturn rotation
• Max pressing force: 1000 N @ 200 mm
• Works in any mounting position
• Fully programmable for flexible positioning
• Handle heavy parts with fast cycle rates
• Compact footprint and clean design - meets “clean room” requirements
• Simple and easy mounting using the main connection plate
• High mechanical rigidity, smooth vibration free motions, quiet operation and high
repeatability throughout the work/motion cycle
• Leakproof performance in every working position
• Lubed for life – zero maintenance. All internal components run in sealed oil bath
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Drive type |
servo-driven
|
| Gripping device |
with gripping tool
|
| Applications |
parts
|
| Other characteristics |
|
