Embedded use, fiber coupling type 1 ch SPAD module (for VIS to NIR region)

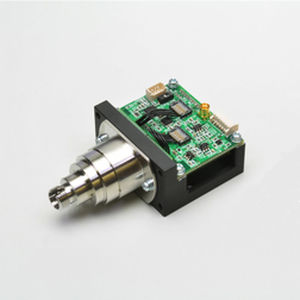

The C16534-050GD is a fiber coupling type photon counting module that can detect low-level light. It consists of a thermoelectric single photon avalanche diode (SPAD), an amplifier, a comparator, a SPAD bias circuit, and a temperature controller. The module operates by simply connecting to an external power supply (±5 V). As this product is compact and lightweight, it is suitable for integration into devices.

Features
- Fiber coupling type
- Single photon counting is possible.
- High sensitivity in the long wavelength range.
- Low dark count
- Compact and lightweight

Specifications
• Wavelength type : VIS to NIR
• Built-in sensor : SPAD
• Effective photosensitive area : -
• Spectral response range (min./max.) : 400 to 1000 nm
• Dark count (typ.) : 20 cps
• Photon detection efficiency (typ.) : 45 %
• Output : Digital
• Note : Fiber coupling type
• Measurement condition : Ta=25 ℃, λ=630 nm, Vs=±5 V

Parameter Name	Parameter Value
Type	photon
Display	analog
Applications	industrial
Other characteristics	compact
