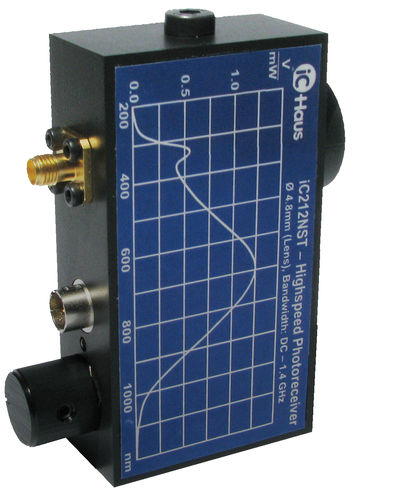

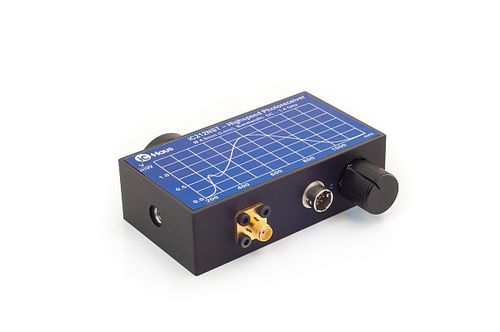

About
Applications
Fast pulse and transient measurement
Optical front-end for oscilloscopes
Features
Bandwidth DC to 1.4 GHz
Si PIN photodiode, Ø 0.2 mm for "No Slow Tail" (NST) option
InGaAs photodiode, Ø 0.1mm for "Near Infrared" (NIR) option
Spectral response range λ = 320 to 1000 nm (NST)
Spectral response range λ = 800 to 1800nm (NIR)
Amplifier transimpedance (gain) 3.125 V/mA
Max. conversion gain 1.25 V/mW @ 700nm (NST)
Max. conversion gain 3.25 V/mW @ 1500nm (NIR)
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Type |
photodiode
|
| Applications |
for radio remote control
|
