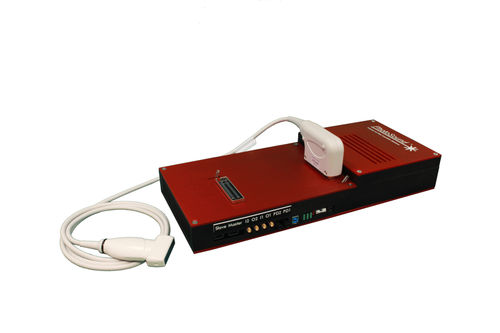

MoleculUS is a dual-modality ultrasound and photoacoustic data acquisition unit that allows the simultaneous collection of ultrasound and photoacoustic channels sharing the same probe elements. The analog signal path of MoleculUS is split into PA and US paths. PA and US modes operate sequentially in time with support for US preview mode and continuous on-fly multiplexing between modes. For PA mode data acquisition, each channel has a dedicated preamplifier with high input impedance and a fixed 40 dB gain. MoleculUS can use linear, convex, and endocavitary handheld probes. Software SDK and user interface are written in MATLAB® (compiled and source code versions); the back-end is a compiled C++ 64-bit DLL library.

Features

Compact housing and USB PC connection for easy instrument integration
Standard clinical, preprogrammed ultrasound (US) modes with toggle on/off photoacoustic (PA) mode
PA mode utilizes optimized broadband preamplification
Integrated TR switching between high voltage, transmit/receive US beamformer and low voltage, receive only PA optimized electronics
Access to raw RF data for both US and PA modes

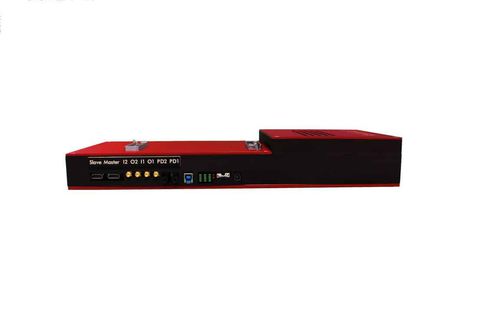

Sync external hardware with data acquisition using electronic or optical IN/OUT trigger ports
Standalone control software based on MATLAB® and backend SDK written in C++ compatible with many frontend languages such as LabView, MATLAB® and PythonTM

Specifications

128 USPA channels
46 to 91 dB PA Mode programmable gain
1 to 18 MHz Transducer Center Frequency
40 MSPS sampling rate
PA Mode Input Impedance 2.2 MΩ

Parameter Name	Parameter Value
Measured physical value	photoacoustic, ultrasound
Mounting	integrated
Options and accessories	programmable USB
