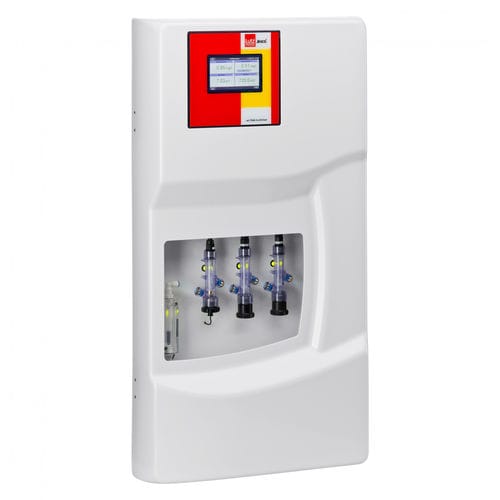

Water sampling stations for industry EASYPRO CS
With the EASYPRO CS, you get a configurable system. This customised solution is ideal for industrial applications and saves costs as only the required components are installed.

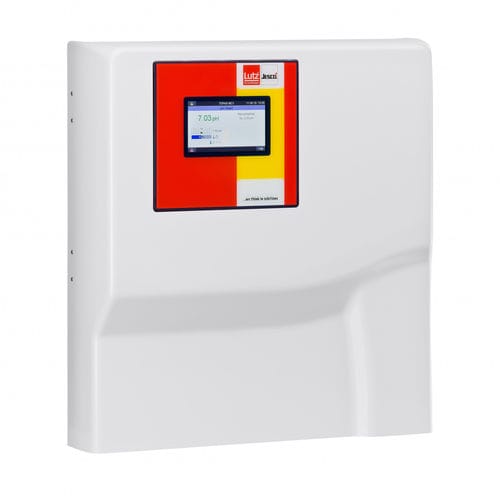

The design of the base plate allows the CS120 to be used in combination with up to three other measured variables in the water. The integrated TOPAX® MC multi-channel controller continuously measures the water parameters and keeps them within the target range. It controls a large number of actuators and final control elements and is simple and intuitive to operate.

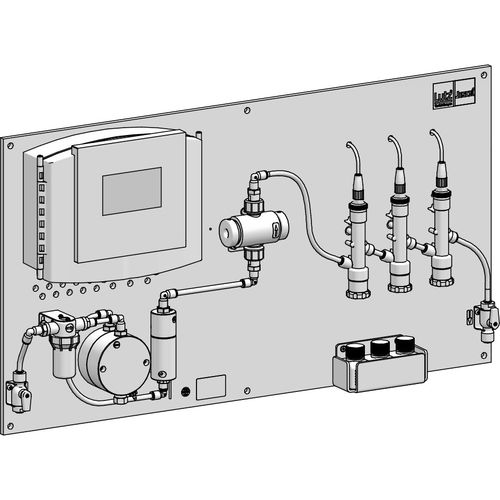

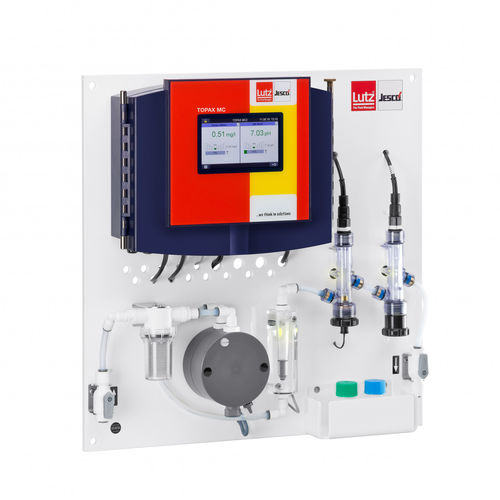

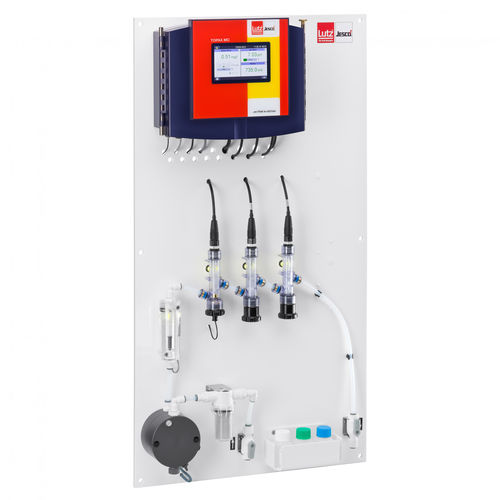

Components of the EASYPRO CS (mounted on base plate):
. Multi-channel controller TOPAX® MC
. Measuring cells and measuring cell fittings
. Sample water filter
. Flow monitor
. DFR 45 flow controller with temperature sensor and sample water tapping point
. Inlet and outlet tap
. Holder for buffer solutions and buffer solutions for adjusting the measuring cells
. Multicoloured LEDs

Parameter Name	Parameter Value
Type	pH
Applications	water
Domain	for the construction industry for the chemical industry for medical applications for the recycling industry for the glass industry
Configuration	floor-standing
Interface	Ethernet RS-485
Other characteristics	real-time digital online remote automatic robust high-performance multi-parameter indoor
