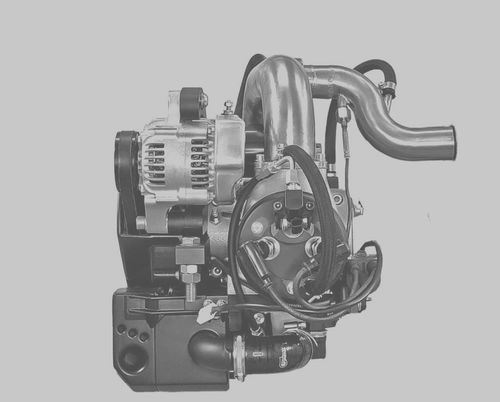

The ARENS RVI 379-2Z is a very low-vibration and quietly running motor. With a box size of H x W x L of 300 x 400 x 600 mm, it is characterized by an extremely flat and space-saving structure.
The motor has only a few moving parts and can be operated with extremely low maintenance. A mechanical drive power of up to 22 kW is possible while maintaining moderate speeds. Depending on the version, the weight is between 25 and 35 kg. ARENS RVI motors have the prerequisites for connection to the Internet of Things (IoT).
Applications
ARENS RVI 379-2Z boxer engine is suitable as a direct drive for small water, land and air vehicles. It is also ideally suited as a drive for electrical generator systems, range extenders in hybrid vehicles and micro-CHP units.
Adjustment
On request, the running characteristics (torque / speed curve) can be adapted to specific requirements. The electronically controlled direct injection and ignition allow the ARENS RVI engines to be adapted for operation with different fuels. When operated with renewable fuels, ARENS RVI boxer engines can be operated almost CO2-neutrally. The engine control is equipped with an adaptable interface for connection to control unit networks (CAN).
ARENS RVI BOXER MOTOR
Technical specifications
The ARENS RVI 379-2Z boxer engine works on the two-stroke principle and is equipped with high-pressure direct injection. The Otto fuel (at least 87 octane) is injected directly into the combustion chamber at 60 to 200 bar, with the engine output being controlled via the injected fuel mass (quality control or dethrottled operation).
Parameter Name | Parameter Value |
---|---|
Type |
petrol
|
Number of cylinders |
2-cylinder
|
Technology |
direct injection
|
Product applications |
|
Cooling system |
water cooling
|
Other characteristics |
|
Power (W) |
11040 - 22000
|
Torque (Nm) |
25 - 25
|
Rotational speed (rpm) |
1000 - 7500
|
Displacement |
379 cm³ (12.816 US fl oz)
|
Weight (kg) |
Min.: 25
|
Length (mm) |
570 - 570
|
Width (mm) |
330 - 330
|
Height |
420 mm (16.5 in)
|
