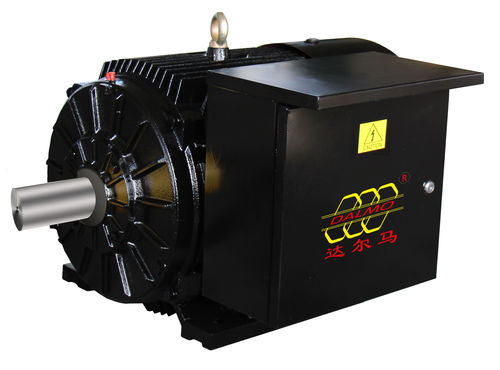

This series of motors are mainly used in the industry of petroleum and chemical industry, instead of current asynchronous motors, and can also be used to replace asynchronous motors in other industries.

This series of motor is our high - tech - based, independent innovation and development of efficient and energy-saving products. This product has always maintained a high scientific and technological content, and has always been in the leading position in the industry. The efficiency index is 5 to 8% higher than the average asynchronous motor. It can replace an asynchronous motor with 1-2 power levels (or one larger seat number) larger than it. After replacing the asynchronous motor, a lot of money will be saved in the aspects of active power, reactive power compensation and energy consumption of air conditioning equipment, and the comprehensive electricity saving rate is 10 ~ 40%. The rotor of the motor uses NdFeB permanent magnet excitation mode, structure and magnetic circuit innovation design. The fully enclosed fan is ventilated and cooled. The protection level of the enclosure is above IEC IP54. The insulation level is F. The shape and installation dimension are the same as the asynchronous motor, so it has good interchangeability.

This series of motors are mainly used in the industry of petroleum and chemical industry, instead of current asynchronous motors, and can also be used to replace asynchronous motors in other industries. This series of motor is our high - tech - based, independent innovation and development of efficient and energy-saving products.

Parameter Name	Parameter Value
AC/DC	AC
Type	synchronous
Protection class	IP54
Configuration	permanent magnet
Number of poles	4-pole 8-pole 6-pole 2-pole
Cooling mechanism	air-cooled
Applications	for the chemical industry for the mining industry
Other characteristics	high-efficiency energy-saving
Power (W)	750 - 315000
Torque (Nm)	1.6 - 2.8
Rotational speed (rpm)	2975 - 2975
Diameter (mm)	80 - 355
Operating temperature (°C)	20 - 60
