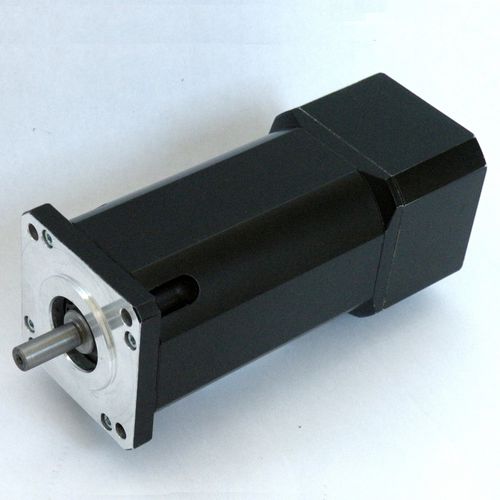

PMSM - Motor with integrated Elife-Drive Controller -

Elife-Motor with Integrated Elife-Drive Controller is designed to be easier to install and use.
A wide range of programmable parameters allow you to customize your system for your needs.

- Designed to drive from 12 Vdc to 48 Vdc Nominal Power
- No Extra-Supply Needed – Just simply connect the terminals of your Battery.
- Electronic Control Integrated inside, to ensure maximum efficiency/performance for your applications.
- Absolute Encoder as Feedback System Inside
- CANopen® communication: CiA® DS301 – CiA® DSP402 (Interface Profile Velocity, Profile Position and Torque Profile Mode).
- Advanced algorithms for predictive speed and Torque Control with Regenerative Operation.
- Telemetry of the Internal functions
- European Conformity: designed and tested in accordance with the EMC emission (EN 61000-6-4) and immunity (EN 61000-6-2) standards.

Parameter Name	Parameter Value
AC/DC	DC
Type	brushless
Voltage (V)	24 - 48
Protection class	maintenance-free
Configuration	permanent magnet with integrated driver and coder compact NEMA 23
Cooling mechanism	air-cooled
Applications	packaging machine with built-in encoder industrial for robotics food for medical equipment heavy-duty for wood-processing machines for medical applications for machine tools for rotary tables spindle for the textile industry for winding operations for dispensers conveyor
Other characteristics	high-efficiency CANopen low-inertia integrated-drive low-vibration constant speed low-noise precision with gearbox vector control with speed controller motion control variable-speed RS-232 with frequency converter with built-in electronics closed-loop low-voltage with integrated controller
Power (W)	270 - 270

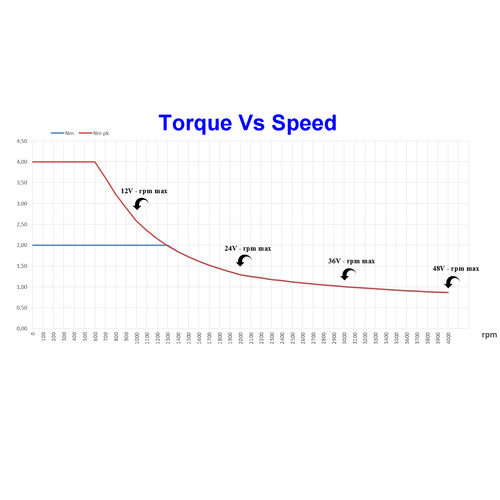

Torque (Nm)	0 - 4
Rotational speed (rpm)	0 - 4000
Diameter (mm)	60 - 60
