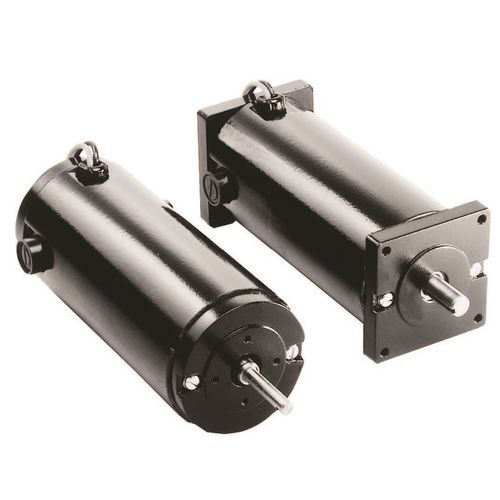

The M4000 Series Permanent Magnet Motor offers the design engineer a rugged product along with a great deal of design flexibility.
• 1/30 hp up to 1/4 hp
• 0.500" Maximum Shaft Diameter
• 2.015" Standard Pilot Diameter
• Class "F" Insulation

What to drive for your demanding applications
■ 1/30 hp up to 1/4 hp
■ Flexible to meet your needs. Electronic controls, mounting options, gear drives and more

RAE M4000 DC motors are available with various options and value added features to meet your application needs. These include special output shaft modifications, specialty brackets, end bell modifications, gear drives, electronic controls, brakes, encoders, junction boxes, special lead or harness assemblies and special terminals or plugs. We can also provide private label or special label product, custom colors and specialty packaging

■ NEMA Class F Insulation
■ Foot or Flange Mounting
■ High Energy Ceramic Magnets
■ Double Shielded Ball Bearings
■ Dynamically Balanced Armature
■ Reversible Design
■ TENV Enclosure
■ Externally Replaceable Brushes
■ Auto-Hook Tang Type Commutator
■ Drop-in Replacement for Popular Units
■ Value Added Options and Modifications Available

Quality Assurance
A Strong Quality Assurance
Commitment – 100% Testing

At RAE, quality consciousness is inherent in the production process from start
to finish. Our stringent testing process includes:
■ AQL sampling of incoming components
■ In-process quality checks
■ Meeting UL and CSA certification standards
■ 100% dynamically balanced and electrically tested armature assemblies
■ Hi-pot testing as well as speed and current testing at no load
■ Minimum 30-minute product run-in testing

Parameter Name	Parameter Value
AC/DC	DC
Type	synchronous
Protection class	rugged
Configuration	permanent magnet with brake TENV compact
Applications	with built-in encoder
Other characteristics	custom with gearbox reversible NEMA with electronic control
Power (W)	24.85 - 186.42
Torque (Nm)	0.39 - 0.77
Rotational speed (rpm)	0 - 3500
