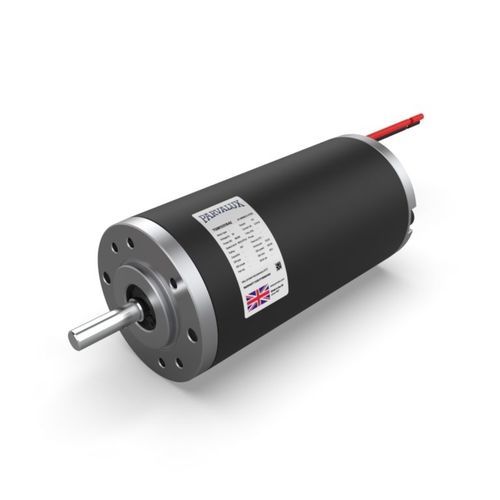

The Parvalux BRx42-40 is a permanent magnet direct current (DC) motor. It is available in a range of options with voltages from 12v – 48v DC and output power up to 20 watts. It is rated for nominal continuous torque up to 0.06 Nm (S1) and maximum intermittent torque up to 0.09 Nm (S3). This motor is perfectly suited for use with a range of Parvalux right-angle and inline gearboxes enabling you to assemble the perfect geared motor combination for your application.

Parameter Name	Parameter Value
AC/DC	DC
Type	asynchronous
Voltage (V)	24 - 24
Protection class	IP54
Configuration	permanent magnet modular small
Number of poles	2-pole
Applications	for industrial applications
Power (W)	20 - 20
Intensity (A)	0.11 - 1.06
Torque (Nm)	0.06 - 0.06 0.09 - 0.09 0.27 - 0.27
Rotational speed (rpm)	3000 - 3000
Operating temperature (°C)	40 - 40
