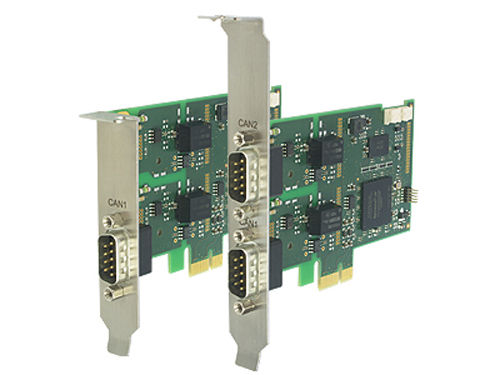

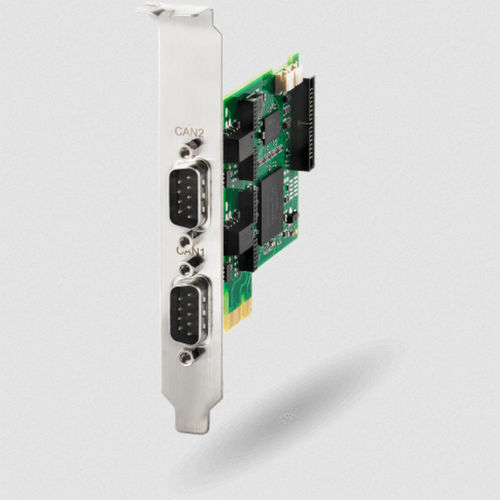

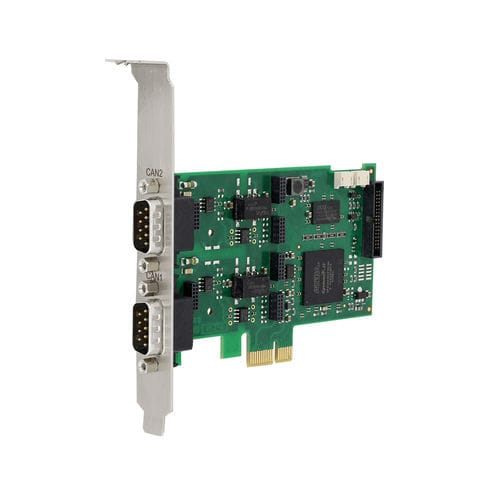

With the CAN-IB100/PCIe HMS offers an interface board based on a modern and highly modular concept. The interface is available with a standard or a low-profile slot bracket.

Features and benefits

Economically priced passive card (no microprocessor on board)
Easy expandable via field bus expansion and expansion board
Up to four CAN channels (High-/Low-Speed optional switchable)
Available as standard and low-profile version
Optional galvanic isolation of the CAN interface
Uniform driver packages support all IXXAT CAN and CAN-FD interfaces and allow easy change of the PC interface type
Powerful programming interface for Windows "VCI" as well as "ECI" for Linux, QNX, RTX, INtime and VxWorks

Versions

The CAN-IB100/PCIe is available with up to four CAN channels and can be delivered with galvanic isolated interfaces. For use in the automotive field the high-speed CAN channels can optionally be switched to low-speed CAN via software. Multiple CAN cards can be installed within one PC if more than four CAN channels are required.
Furthermore, the modular architecture of the interface card enables the easy extension with customer specific interfaces via piggyback modules.

Parameter Name	Parameter Value
Bus standard	PCIe
Bus	CAN
Applications	industrial
Other characteristics	low-profile
