Measuring cards for individually designed high-precision
vibro-acoustic measurement systems featuring a high channel count

OVERVIEW

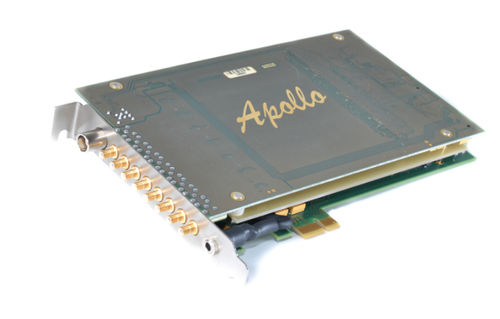

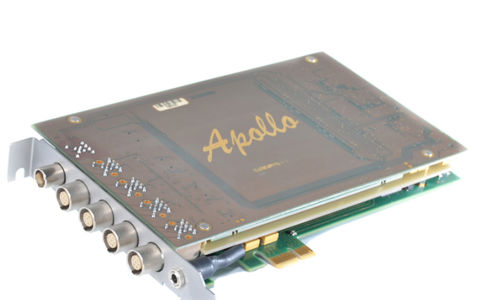

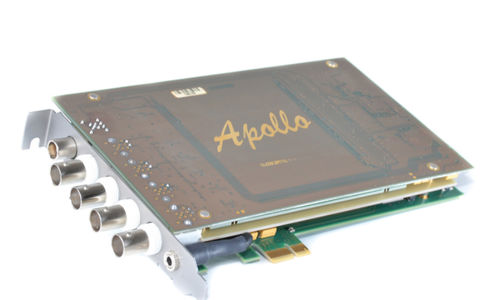

The Apollo PCIe-Express measuring cards provide a means to implement individually composed, low-cost, high-precision vibro-acoustic measurement systems with a large number of channels. The synchronized sample rate of DC ... 204kHz per channel with a dynamic range of 120dB of the integrated ADCs ensure a wide range of applications.

The Apollo PCI-Express measuring cards are especially well suited for:

Data acquisition and analysis
Customized multi-channel vibro-acoustic measuring instruments
Noise and vibration monitoring
Machinery and equipment status monitoring
Acoustic camera
Quality assurance
Research and development

The PCIe measuring cards may be mounted to an empty PCI Express slot in any modern Windows PC. For channel extension any number of measuring cards may be inserted into a PC and synchronized for sample accuracy. Reduction of the data volume is achieved by adjusting the sample rate of each channel individually (binary decimation).

The Apollo_PCIe measuring cards are fully compatible with the PTB-approved Soundbook_MK2 measurement system.

Parameter Name	Parameter Value
Bus standard	PCI Express
Number of inputs/outputs	multi-channel
Mounting	integrated
