Oblique Viewing Module
Schrägsichtmodul

Perfect Flexibility

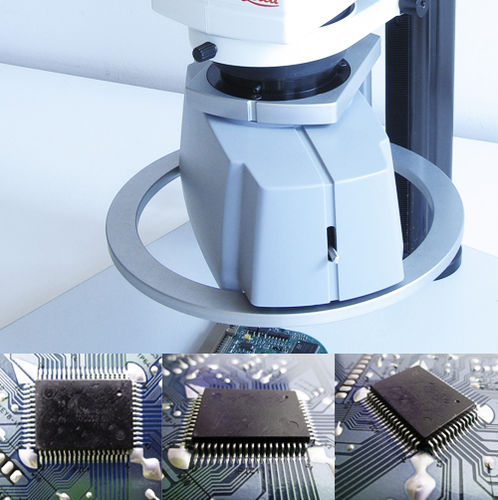

Our oblique viewing module enables a tilted view of your sample, with full 360 degree viewing around an object or feature, simply by pivoting the module. At the ick of a lever, you can switch instantly between oblique viewing mode and normal vertical mode so you never lose the functionality of your ordinary stereo microscope!

Universally compatible

The clever design of the unit means that it is compatible to an ever increasing range of stereo microscopes. Simply identify the corresponding adapter ring to your microscope, and you are ready to go!

Compact, Fully Integrated Unit

This highly stable and perfectly designed module integrates seamlessly with all major microscope brands. Perfect image quality is guaranteed thanks to the integrated high quality 0.3x achromatic lens. The unit features an integrated, custom developed LED ring light which is fully controllable and is designed to illuminate the sample area with a diffuse, but powerful homogeneous light.

Ideal Repair Station

With working distances of 100 mm in oblique mode, and 115 mm in normal vertical mode, the unit is ideal for a wide variety of repair and rework tasks, being particularly suited to SMT repair work.

Benefits

- Compact, easy to use fully integrated unit
- 360° inspection without moving the object
- Adapts to all major microscope brands
- Perfect for SMT-Repair Works

Key Features

- Includes integrated 0.3x Objective
- High performance variable LED-Ring Light
- Large working distance of 100/115 mm (oblique/straight view)
- Oblique and direct view mode

Parameter Name	Parameter Value
Applications	for PCB
Type	soldering
