About
-Automatic RS485 self line turnaround
-Self powered or powered from external source
-Speed up to 1 Mbps
-SUB D9 connector for RS232 port
-Screw-in connecting terminal for RS422/485 port
-Metal casing, CE standards
-LED signal display
-M.T.B.F. > 10e6 P.O.H.
Introduction

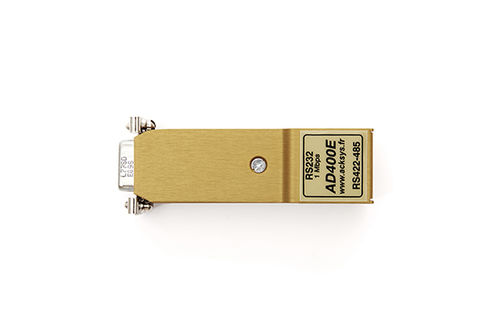

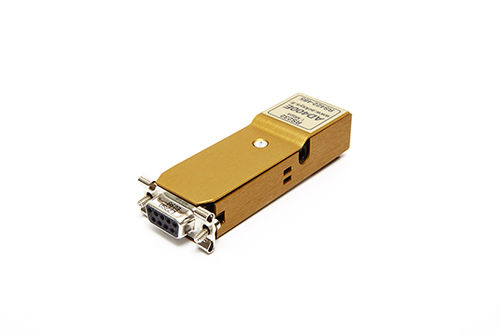

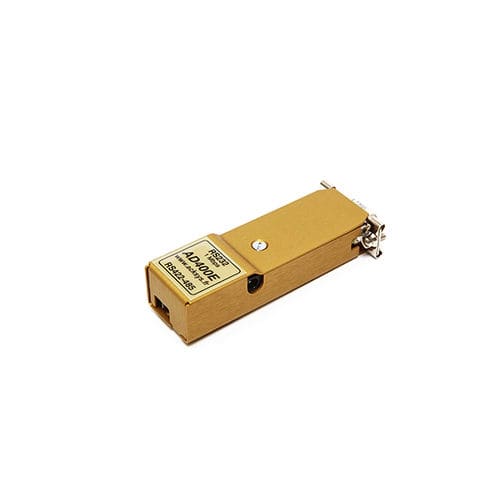

Designed to connect directly to PCs, this converter has a female SUB D9 connector to the RS232 port and a screw-in connecrting terminal for the RS-422/485 port.
It can be powered internally from the RS232 port or externally.
Its advanced technology provides speeds up to 1Mbps, making it ideal for the fast RS232 ports of modern computers.
The high level of integration and built-in protection make the AD400E extremely reliable and compact.
The technical characteristics make it a universal product at a very attractive price.
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Type |
signal
|
| Bus |
RS232, RS-485, RS422, universal, Modbus
|
| Applications |
for PC
|
| Other characteristics |
|
