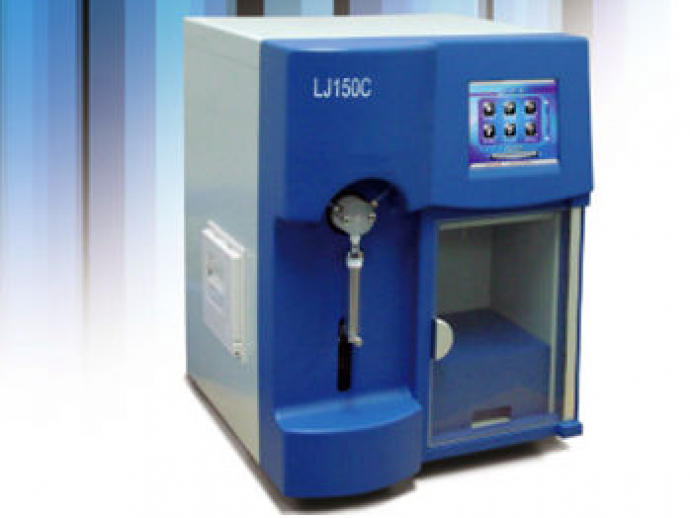

Particle counter adopts the principle of Light Blockage Method (Shading Method). It is used for detecting size and number of solid particles in liquid. It can be widely used in insoluble particle detection for pure solution and ultra-pure water, particle pollution detection for chemical reagent and cleaning agents, cleanliness testing for precision parts, particle pollution degree detection for low viscosity oil and so on.

Specification
Light source: Semiconductor laser
Measuring range: 0.8µm~600µm (Depends on the sensor)
Sensitivity: 0.8µm (IS04402) or 3µm (c) (GB/T18854, IS011171)
Measuring channels: 16 channels, particle size can be set arbitrarily
Sampling volume: 0.2~100ml, interval 0.1ml
Sampling volume precision: Be superior to ±0.5%
Sampling speed: 5~80mL/min
Cleaning speed: 5~80mL/min
Resolution: Be superior to 10% (GBT18854-2002, IS011171)
Coincidence error limit: 12000~40000 particles/ mL (Depends on the sensor)
Repeatability: RSD<2%
Count accuracy: ±10%
Test sample viscosity: ≤100cSt
Test sample temperature: 0°C~80°C
Work temperature: 0°C~60°C
Storage temperature: -30°C~80°C
Power supply: 100~245V,49~62Hz,
Overall dimensions: 360x360x475mm
Instrument net weight: 17kg

Parameter Name	Parameter Value
Type	particle
Display	digital
Applications	for liquids
