The NL Camera reliably detects and locates partial discharges in power grids using both sonic and ultrasonic frequencies. The solution uses the unmatched NL Analytics to determine the severity of the partial discharge and advise how you can fix the problem, helping you to:

- Make more intelligent maintenance decisions
- Cut maintenance costs
- Reduce inspection time
- Decrease expensive downtime
- Reduce breakdowns
- Avoid catastrophic failures

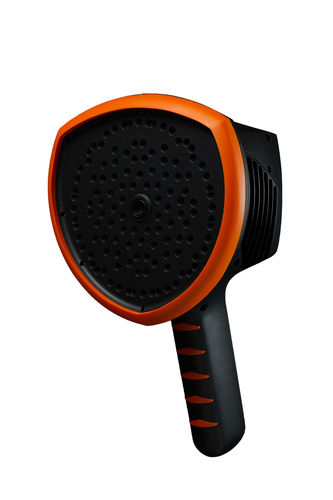

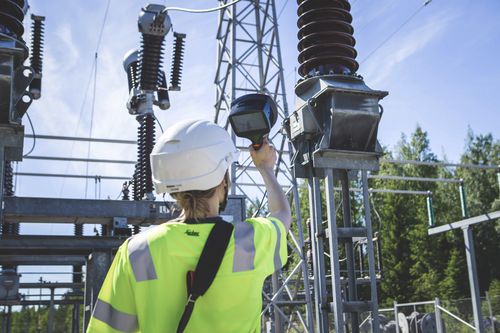

The NL Camera’s 124 state-of-the-art microphones reliably detect the sounds partial discharges emit, even when they are not audible to the human ear. The camera is an efficient and easy solution for locating problems in high voltage electrical systems from a distance of more than 130 meters, preventing breakdowns and reducing downtime and energy losses. With the NL Camera, you can also find partial discharges that are missed by UV and IR cameras, for the solution works without direct line-of-sight with, for example, small discharges inside cable terminations.

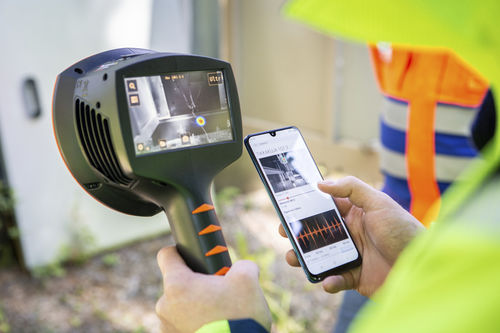

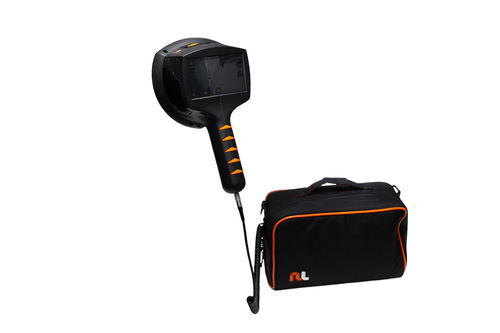

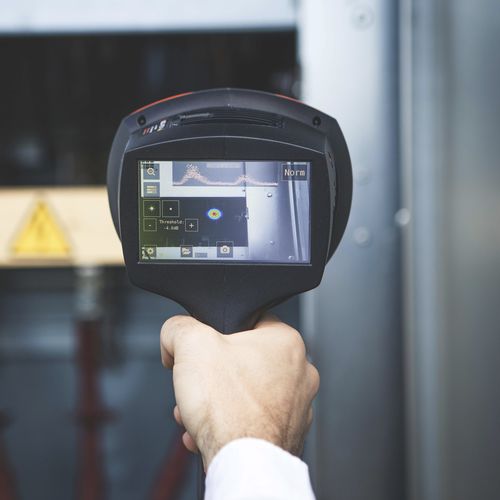

The portable and lightweight hand-held camera is intuitive to use and requires minimal training. The built-in processing power enables you to instantly see the PD pattern on the integrated screen.

The machine learning-powered NL Cloud and offline NL Camera Viewer Pro software offer more in-depth, unprecedented analytics that automatically classifies the type of the detected partial discharge, assesses its severity, and gives recommendations on what actions to take next. The clear-cut results free up your resources from trying to interpret them so that you can focus on fixing the issues the comprehensive solution identifies.

Parameter Name	Parameter Value
Function	for partial discharge detection acoustic
Spectrum	ultrasonic
Other characteristics	lightweight low-noise portable with real time viewing (RTV) with touch screen
