About

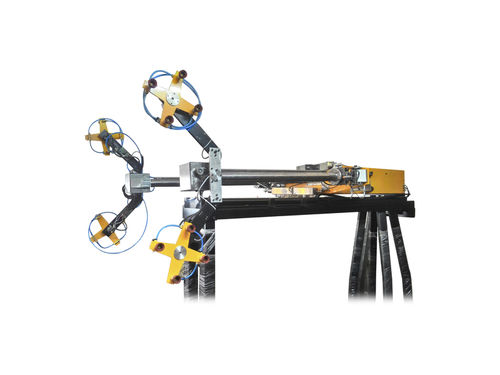

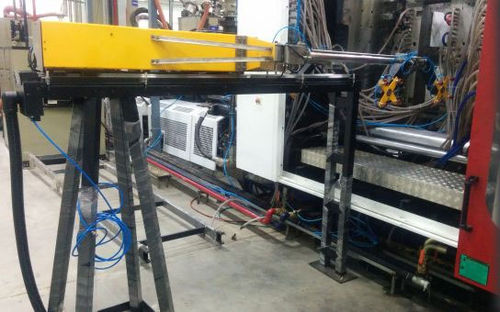

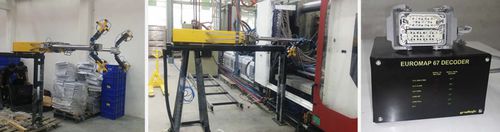

Artimus is an EUROMAP-67 compatible - 11 Degrees of Freedom Robot used for Injection Molding Machines with a capacity of upto 4000 Tonnes

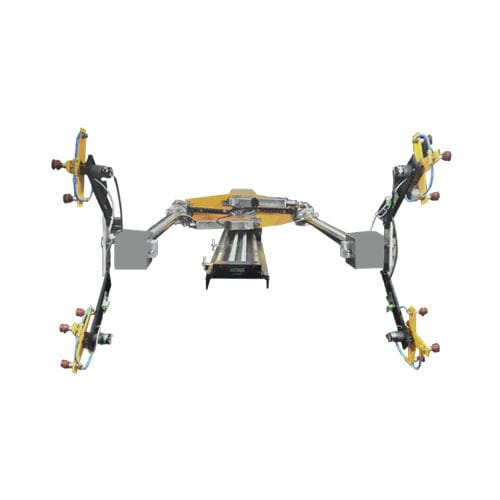

The system has a reach of 2000 mm inside the mold and can pick upto 4 parts simultaneously with a weight of 2 Kg maximum.
The robot comes with a teach pendant and touch screen controller and motion controller to control and program in real time.
It utilises gridMOVE series of controllers for lower operation power (Under 500 Watts) and precise control.
The robot in itself weight only 100 kg and can be setup in very low time.
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Type |
parallel
|
| Function |
|
| Application domain |
for injection molding machines
|
| Payload (kg) |
8 - 8
|
| Reach (mm) |
2000 - 2000
|
| Repeatability (mm) |
0.5 - 0.5
|
