About

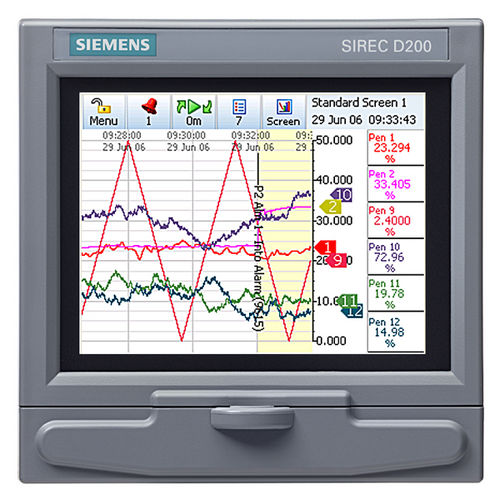

The SIREC D200 is a competitive Display recorder in 144 mm x 144 mm format with 5.7" Color LCD Display in QVGA resolution.
Benefits
Sampling rate 100/200/500 msec
Accuracy: 0,1% Typical –T/C
Transmitter Power Supply 24Vdc
Math functions
1 GB (optional 2 GB) internal data buffer
Interface: Ethernet TCP/IP
Data logging via USB Interface or SD card
Configuration on device or by way of SIREC D Manager or Server-Software
Touch-Screen with rapid navigation
Up to 4 levels of password protection with up to 50 different users available.
NEMA 3/IP54 type front face protection, NEMA 4X/IP66 available as an option
Configuration on device or by way of SIREC D Manager or Server-Software
Firmware options individual selectable by a flexible credit system
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Type |
paperless
|
| Other characteristics |
|
