• 8 input temperature measurement/logging (°C/tF)

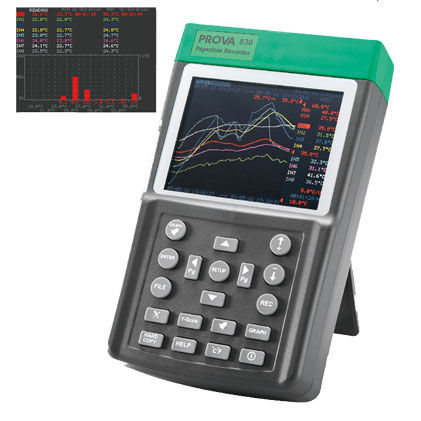

• Colo r graphic display of 8 curves at the same time
• Display of max and min values for each input
• Selection of 11 types of thermocouple
• Easy socket for thermocouple mini connector
• Basic accu racy 0.1% ± i oc (K type)
• Programmable Hi-Lo alarm with timers when out of HI-LO limits
• Sampling rate 8 inputs / 1 second
• 28 hour recording with Lithium battery of 3400mAH
• Standard 2G SD memory card (stores 3.8-year of data)
• SD card directly read by PC
• Easy data file management (Read and Delete functions)
• Built-in calendar dock
• Accept analog outputs from instruments
• Independent input setup (type of
thermocouple, Hi-Lo alarm values, name of
• Engineering Unit)
• Isolated input protection of 350Vp-p
between any two inputs
• Programmable Engineenng Unit (E.U.) to integrate analog output (-50 to 60 mv) from instruments (e.g. Sound level meter,
• Humidity meter, Current adaptor)
• Screen hardcopy into bit map files for easy documentation
• Ready to use package (thermocouples, SD card, and battery)
• Digital and analog (bargraph) data display
• Statistics data (t-listogram) for easy analysis
• Easy curves manipulation (hide or display selected curves)

Parameter Name	Parameter Value
Type	paperless digital
Measured physical value	temperature, humidity
Applications	alarm
Other characteristics	portable programmable with LCD graphic display
