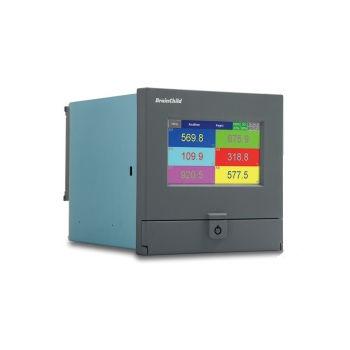

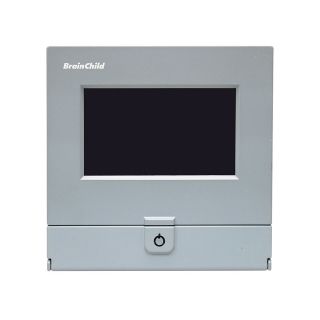

BrainChild PR10 is a paperless temperature recorder for laboratories, factories and classrooms alike. It has a built-in high resolution 4.3-inch touchscreen display, 6 channels, plug & play IO cards, and internal Flash memory storage. Standard Ethernet and optional RS-232/RS-422/RS485 communication enable users to access onscreen data and setup remote monitoring via the RS serial interface or Ethernet networking. The PR10 paperlss chart recorder includes standard configuration software featuring a historical viewer.

The new PR series paperless recorders are launched in full product range with outstanding specifications and features. PR series includes a low-cost PR10, a popular PR20 and a high-end PR30. Recorders in 4.3” & 12.1” displays in addition to 5.6”, 100 msec. sampling rate, external channels, batch, custom display, more strict FDA 21 CFR part 11, handwriting messages, SD slot, 2 USBs, pulse input, field calibration, Web Server, email, 19 languages, IP65, and yet in shorter depth 167mm.

Touch Screen, TFT, 65K color
100 msec. scan rate
Internal memory: 256 MB Flash
CPU: ARM Cortex-A8, 1Ghz
Standard: Ethernet, SD slot & USB
Option: RS232/422/485 & Pulse input
Protection: IP65 front & IP20 rear
Standards: CE, cULus & RoHS
Pulse input for flow applications
Direct printer connectivity
Webserver & Email directly from Recorder
Remote IO channels, virtual channels
Master & slave, modbus RTU and TCP protocols
Custom display pages similar to HMI
Batch operations, built in security & FDA 21 CFR part 11
19 international languages

Parameter Name	Parameter Value
Type	paperless chart
Measured physical value	temperature, flow
Applications	display
Other characteristics	Ethernet IP65
