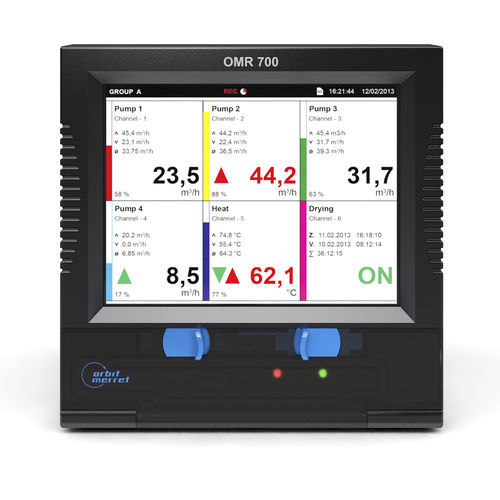

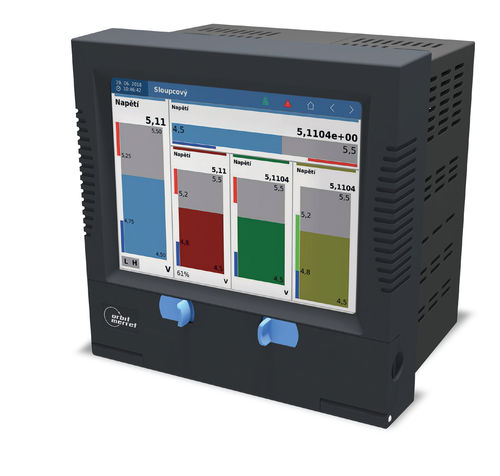

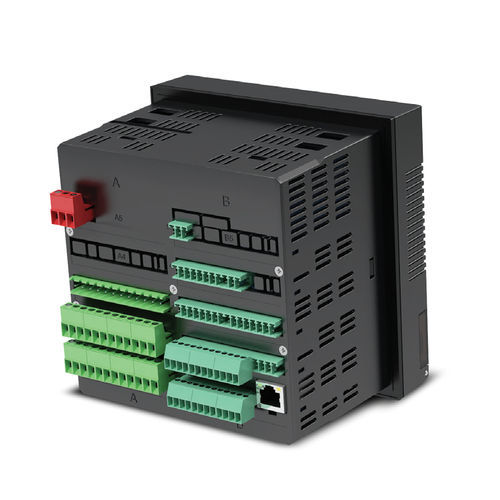

Modular recorder with 8 slots for plug-in modules:
- analog inputs, max. 12 inputs/module
- digital inputs, max. 12 inputs/module
- analog outputs, max. 4 outputs/module
- digital outputs, max. 10 outputs/module • data outputs

Always included:
- color TFT display 5.7" with capacitive panel
- main and backup system • digital inputs and outputs
- recording to internal memory, SD card or USB Flash
- Ethernet 10/100B, RS 485 – Modbus
- USB, microUSB
- internal data memory 2x 512 MB
- sound module
- RTC
- protection IP64
- power supply 80...250 V AC/DC

Parameter Name	Parameter Value
Type	paperless
Measured physical value	universal
Applications	industrial
Number of channels	96-channel
Other characteristics	USB Ethernet panel-mount with integrated data logger modular with touchscreen with LCD graphic display
