About

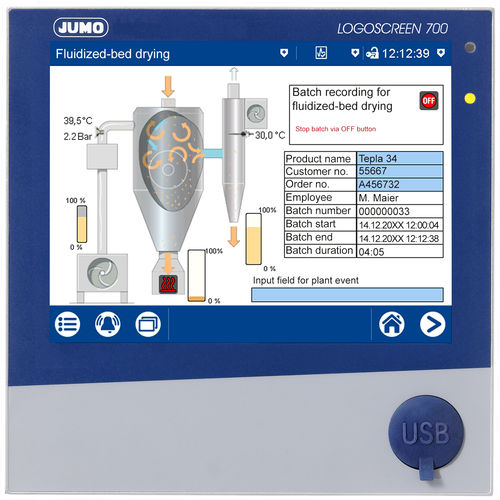

The JUMO LOGOSCREEN 700 paperless recorder is characterized by an intuitive, icon-based operation and visualization concept that makes operation easy. It is available in multiple versions for process data acquisition and can be adapted flexibly.
• Intuitive touch operation
• PROFINET IO device available
• 10 customer-specific process screens
Measurement inputs -
Max. 18 user configurable analog inputs for RTD temperature probes, thermocouples, current 0(4) to 20 mA, voltage -10 to +10 V, support of up to 24 external channels respectively (analog and digital)
Digital inputs (solid) -
Max. 18 digital inputs (4 Hz), 2 inputs up to 12.5 kHz
Digital inputs/outputs (switchable) -
Max. 24 digital inputs/outputs, 2 inputs up to 12.5 kHz
Analog outputs -
Max. 3 analog outputs, voltage 0 to 10 V or current 0(4) to 20 mA
Interfaces -
RS232/485 for barcode reader, USB (host/device), Modbus master/slave (RS485/TCP), Ethernet or PROFINET
Relay (changeover contact) -
1 relay (changeover contact)/6 relays (changeover contacts) optionally
Display -
5.7 inch TFT color screen
Internal memory -
1 GB
External storage media -
USB flash drive
Memory cycle -
125 ms to 32000 s
Front panel -
Zinc die-cast with decor foil (144 × 144 mm format)
Approvals - c
ULus, FDA compliant according to 21 CFR Part 11 (extra code 888), AMS2750/CQI-9 (extra code)
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Type |
paperless
|
| Measured physical value |
temperature
|
| Applications |
industrial
|
| Other characteristics |
|
