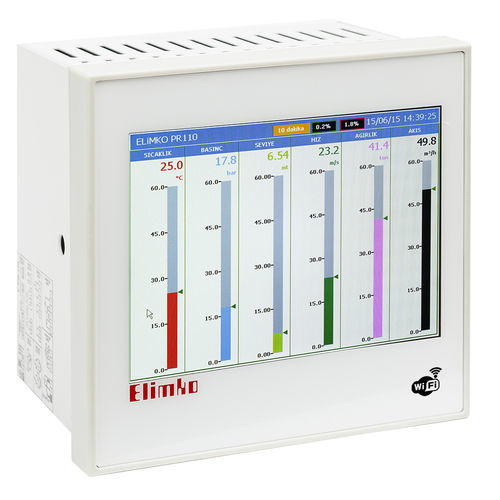

E-PR-110 series paperless recorders and controllers are designed using new generation micro controllers. Unit dimensions are 144 mm x 144 mm. E-PR-110 series records are the touch screen paperless recorders with the configurable 3, 6, 9, 12, 15, 18, 21 and 24 chanel universal inputs, 12 relay outputs, 64 digital inputs/ outputs with plug&play I/O cards and the most user freindly.

E-PR-110 series paperless recorders are used at different fields of industry such as iron and stell, power plants, chemical and petro chemical refineries, glass, food, cement and others to record and data storage application of temperature, pressure, level, flow, current, voltage etc.
E-PR-110 series are multifunctional recorders with RS-485 and ethernet communication facilities, math functions, Wi-Fi facilities, 1 USB port and high internal data storage capacity.

Accuracy Class 0.5
Display 5.7” TFT display,
640×480 resolution,
18 bit color, touchscreen
Relay Output SPST-NO; 250 V AC, 5 A
Relay Outputs Numbers Max. 12 relay output
(depends on configuration)
Analog Digital Converter 16 bit (isolated)
Analog Input Numbers Max. 24 analog input
(depends on configuration)
Input Signal TC (B, E, J,K, L, N, R, S,
T, U), RT (Pt-50, Pt-100,
Pt-500, Pt-1000, Ni-100,
Ni-200, Ni-500, Ni-1000),
0/20 mA, 4/20 mA,
-2000 mV/2000 mV, 0/10 V
Digital Input Numbers Max. 64 digital input
(depends on configuration)
Digital Output Numbers Max. 64 digital output
(depends on configuration)
Power Consumption 30 W max.
Sampling Rate 100 ms (for all channels)
Security Security code for 5 users
Protection Class IP65 front panel,

Parameter Name	Parameter Value
Type	digital paperless
Measured physical value	temperature, pressure, current, flow
Applications	industrial
Number of channels	6-channel 12-channel 24-channel 9-channel 18-channel 15-channel 21-channel
Other characteristics	USB WiFi multifunction with touchscreen IP65
