High Speed Flexibility and Performance
GEN7i is a powerful and fast data recorder. It offers both continuous direct-to-disk with up to 350 MB/s as well as fast transient recording.

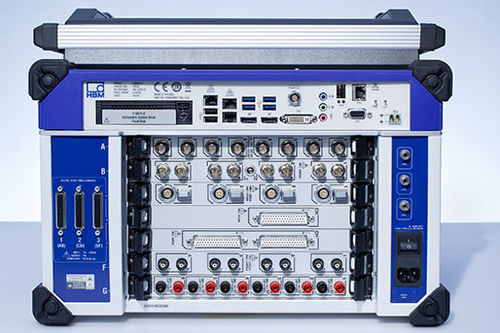

GEN7i: HighSpeed Transient Recorder and Data Acquisition System

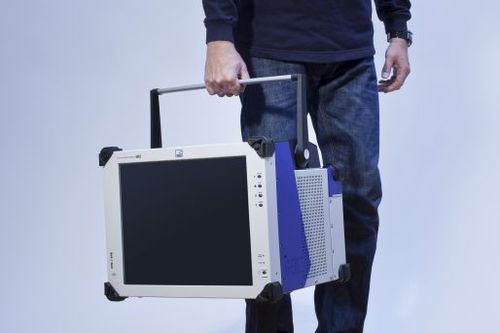

Just like that it´s ready to go: GEN7i is ready to use immediately, as soon as you have unpacked the device - Perception Enterprise is already installed on the device. The GEN7i is a versatile portable and mobile data acquisition system. In addition, it provides all the features expected from a transient recorder. The hardware combines a full-featured Windows® PC with a large, high-resolution touch screen and a robust seven-slot acquisition unit. Designed for operation in the field as well as in the laboratory, the GEN7i features a unique, Instrument Panel touch interface and turns with a single touch into a dedicated instrument for analysis and sophisticated reporting using the extra Perception software options.
Depending on the selected operating mode - continuous or transient - measurement data is either transferred directly to the internal SSD, stored on the optional removable Disk, transferred to external PC, to an NAS (Network Attached Storage) or it is initally bufferd in high-speed RAM on the input card to offer transient recording without any throughput limitaitions.

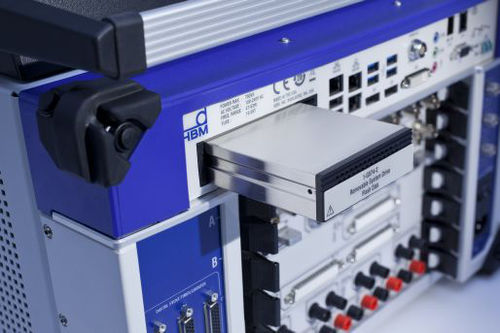

A master/slave function is available for synchronized recording using two or more Genesis HighSpeed devices. More security for your data: The easy removal of the hard disk for data storage as needed and optionally for safekeeping of the operating system as well meets the highest security requirements.
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Type |
paperless
|
| Applications |
data logger
|
| Other characteristics |
|
