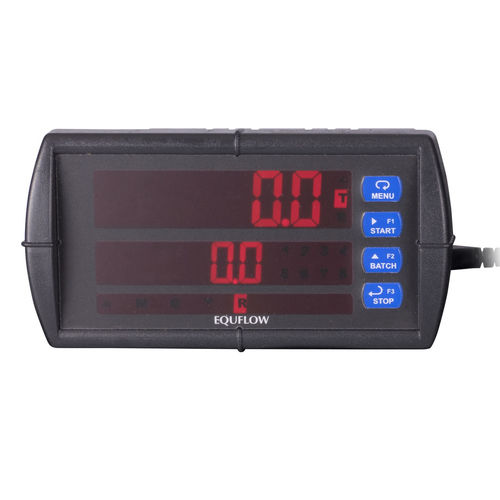

A batch controller can be programmée) for a wide variety of applications. Setup is easy for single or multistage batching. Automatic overrun correction keeps the batch size accurate, even over time and with System wear. It can record total, grand total, or non resettable grand total with a time base of seconds, minutes, hours or days. The user can program a conversion factor, and configure a non-resettable grand total using password protection.

Power supply: 85-265 VAC 50/60 Hz 20 VA or
90-265 VDC 20 Watts
Panel mount
2 SPDT (Form C) relays
NEMA 4X, IP65 front
Large dual-line 6-digit display
Programmable displays & function keys
Modbus® RTU communication protocol standard
Display batch total, rate, grand total, count or preset
Rate in units per second, minute, hour, or day
9-digit totalizer with total overflow feature
Start/pause/stop, change batch with front buttons
Single or multi-stage batch control (up to 4 relays)
Automatic overrun correction
Automatic or manual batch control
Low or high flow alarms while batching
Count up or down with each batch
Program and control with a computer using MeterView Pro

Parameter Name	Parameter Value
Options	panel-mounted
