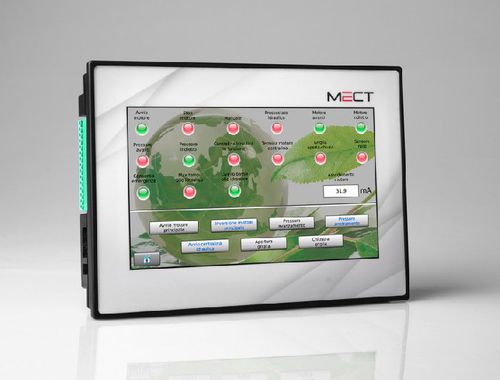

The PLC operator panel TPAC1008 03 can interface directly a series of sensors and actuators: 28 digital inputs, 20 digital outputs, 4 configurable analog inputs for sensors, 4 configurable analog outputs, 5 encoder inputs, 3 load cells input and 4 PTO.
On the PLC operator panel TPAC1008 03 some of the most popular fieldbuses such as Modbus RTU on RS422 and Modbus TCP are available. The Ethernet interface 100Mbit/s allows a remote management of the device.
The USB host port allows the PLC operator panel TPAC1008 03 to make a datalogger of the acquired field parameters and field software update without using a PC.

SOFTWARE
To configure your PLC operator panel TPAC1008 03 is available the "MECT SUITE" software.
"MECT SUITE" contains the software to configure the system and to create the PLC and HMI graphics applications:

Qt Creator:
Generate graphics HMI application (graphics pages);
Generation and definition of the system variables;
Configuration of the communication parameters;
Operator Panel preliminary setting;
Easy insertion of elements associated to PLC variables;
Ready pages for recording / logging;
Use, if necessary, Qt / C++ code;
HMI application debug.

ATCMControl:
Generation PLC application (in 5 IEC 61131-3 languages);
In addition to several libraries are available those of PID and Self-tuning;
PLC application debug.

On TPAC1008 03 PLC up to 192 retentive variables are available (the value is maintained during the power off of the HMI) and more than 4800 not retentive variables.

Parameter Name	Parameter Value
Type	panel-mount
Input/output	digital input, analog inputs, digital outputs, analog outputs
Network	Modbus Ethernet
Other characteristics	with integrated touch screen HMI
Applications	management
