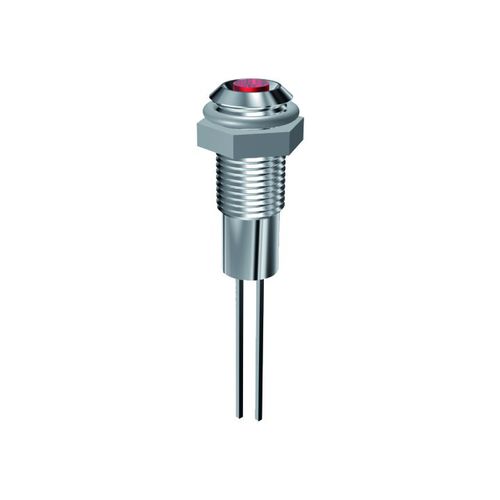

LED-Indicator Ø6mm inside reflector, flat top LED

LED-Indicator with inside reflector and flat top LED.

Specification
Housing: Metal housing in chromium-plated for
screw-fastening (screw-thread M6x0.5mm)
Tightening torque: 100 cN·m
Mounting-hole: Ø6+0.2mm
Protection class acc. to DIN EN 60529: IP50
Connection: 2-pin
Soldering temperature: 260°/5 sec.
Operating voltage: LED voltage DC

Content of delivery: Indicator with washer and
securing nut

Parameter Name	Parameter Value
Measured value	temperature, voltage, torque
Display	LED
Type	panel
