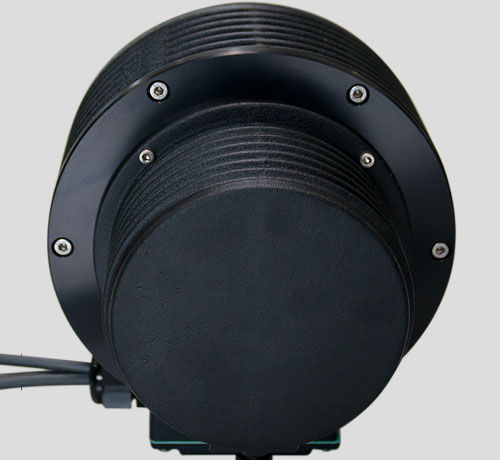

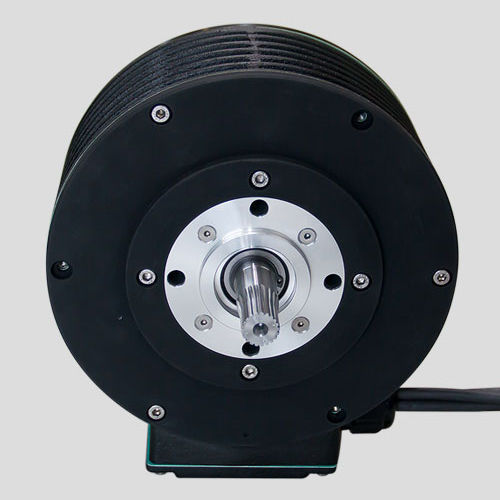

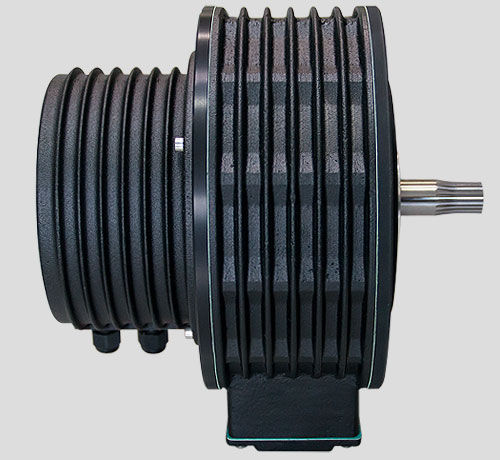

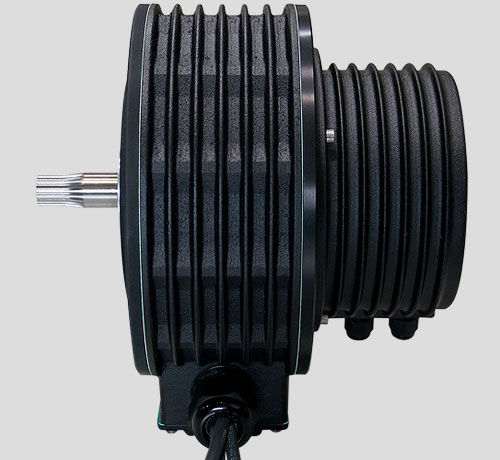

Traction drive for low voltage applications
The TDS 130 series is a specially designed traction drive for low voltage applications. It's a lightwight, compact and efficient drive for robust working machines.

According to your needs we can change the windings for other speeds or system voltages. The whole TDS family is also available as generator and supports recuperation

The whole TDS family is also available as generator and supports recuperation.

Motor data
cooling : Air cooling with 6m/s at 22°C ambient temperature
Weight : ~ 6,9 kg

integrated encoder and temperature sensor.
Optionally available with electromagnectic holding brake and with motor controller.

FEATURES
+
Compact design, flat construction
+
Excellent weight / performance / size ratio
+
Low intertia moment
+
Smooth drive performance even in low speeds
+
Maintenance free

AREAS OF APPLICATION
> Municipal vehicles
> Acricultural machines
> Construciton machines
> Automatic guided vehicles
> Leisure vehicles
> Ventilators, pumps, compressors, winches…

Parameter Name	Parameter Value
AC/DC	DC
Type	synchronous
Protection class	robust maintenance-free
Configuration	with built-in electromagnetic brake compact flat pancake type
Cooling mechanism	air-cooled
Applications	for ventilators for pumps traction for compressors for automotive applications for electric vehicles for winches
Other characteristics	low-voltage low-speed low-inertia with integrated controller
Power (W)	1700 - 2800
Rotational speed (rpm)	3000 - 3000
Diameter (mm)	194 - 194
Operating temperature (°C)	22 - 22
