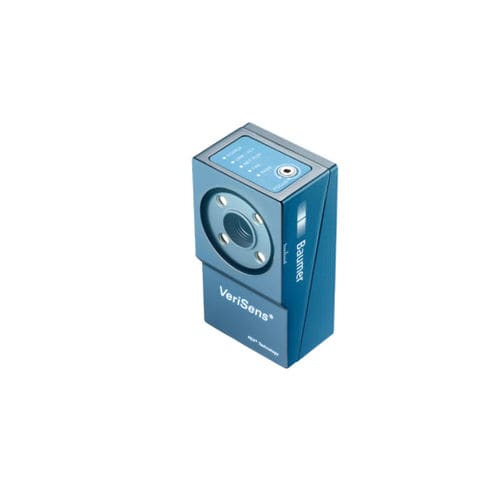

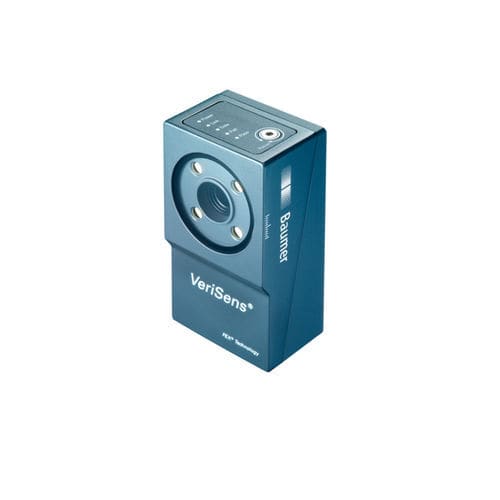

About
PROFINET and EtherNet/IP interface integrated
FEX image processor
User management
Password protection
Backup & Restore function
General data
Resolution
752 × 480 px
Sensor type
1/3″ CMOS, monochrome
Illumination
integrated, LED white
LED class
risk group 1 (low risk, EN 62471:2008)
High-resolution mode
max. 50 inspections per second
Object distance min.
50 mm
Object distance max.
450 mm
Number of jobs (products)
≤ 255
Features per job
32
Signal processing
Baumer FEX® 4.0
Defect image memory
32
Lens
12 mm
Electrical data
Nominal voltage power supply
24 V +- 25%
Nominal voltage power supply (add-on)
Class 2 according to NEC / protection class III
Nominal voltage power supply (info)
The device is intended for supply from an isolated limited power source according to UL61010-1, 3rd ed cl. 9.4 or a limited energy source according to UL60950-1 or Class 2 according to NEC.
Power consumption
max. 18 W (with I/O)
Inputs
8 … 30 V (polarity protected)
Digital inputs
5 inputs
trigger
job selection
external teach-in
encoders (CH-A, CH-B) 500 kHz
Outputs
PNP Ipeak = 100 mA and Ieff = 50 mA (short-circuit proof)
Digital outputs
5 outputs
Pass / Fail
Flash Sync
Alarm
Camera Ready
Output Enable
Initial setup
Ethernet (10BASE-T / 100BASE-TX)
Process interface
PROFINET (CC-A)
EtherNet/IP™
TCP/UDP (Ethernet)
Visualization
configurable web interface with MultiViewer function
Mechanical data
Width
53 mm
Height
99.5 mm
Depth
38 mm
Weight
≤ 250 g
Material
housing: aluminum
cover glass: PMMA
Environmental conditions
Operating temperature
+5 … +60 °C @ T = measurement point
Storage temperature
-20 … +70 °C
Humidity
0 … 90 % (non-condensing)
Protection class
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Applications |
|
| Technology |
digital
|
| Function |
|
| Spectrum |
monochrome, B&W
|
| Sensor |
CMOS
|
| Interface |
|
| Resolution level |
HD
|
| Other characteristics |
|
