Character height 50 to 200 mm, software switchable
Free software for parameterization and transmission of ASCII texts
Message display also as ticker
International character set (8 languages)
Half life of LEDs: 100,000 hours
Devices for ceiling, wall and base mounting
Power supply 110 to 230 VAC

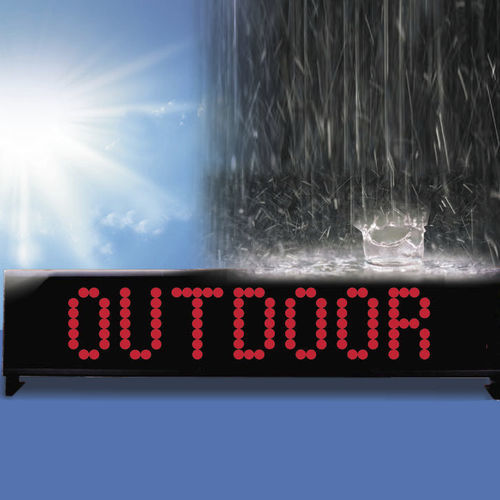

Our specialists For Extreme Temperatures And Weather Conditions

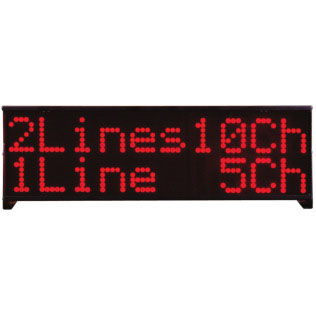

1 to 4 Line Large Displays With 10 to 40 Characters per Line in Aluminium Housing
Brightness 8000 cd (1750 cd as Option)
Protection Class IP65 For Exterior Usage
Ambient Temperature -20° to 60° C
Available as High Bright Version With RED LEDs And as TRI-Color Version
Interfaces: 1 x RS232, 1 x RS422/485 (on Board), Ethernet, DeviceNet, Profibus (Option)

Parameter Name	Parameter Value
Type	LED alphanumeric numeric color
Format	large-format, 2-line, 1-line, 4-line
Applications	industrial information digital signage for stadiums for high-traffic areas for photovoltaic installations for accident prevention for tank level measurement
Other characteristics	RS-232 RS485 PROFIBUS Ethernet RS422 outdoor wall-mounted ceiling IP65 sunlight-readable
Height	Min.: 50 mm (1.9685 in)Max.: 200 mm (7.874 in)
