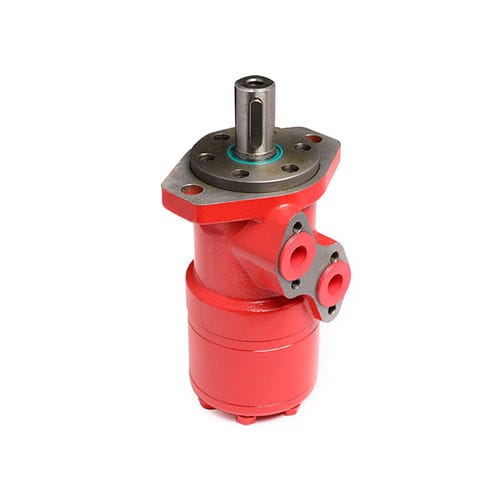

GR Series Orbit Motor

The GR series orbit motor is equipped with a spool valve and an integrated design with a distribution valve and output shaft. The universal shaft drives the distribution valve to transfer the mechanical energy from the gear to the output shaft. The valve has a hydrodynamic bearing, with a long service life within the maximum load. A roll-gearmotor set is also utilized.

Optional functions
Spool valve, roll-gerotor
Flange coupling
Motor with needle bearing
Side and bottom port
Shaft extension: straight, spline, tapered
Metric and BSPP port
Speed sensing

Parameter Name	Parameter Value
Technology	gear orbital
Pressure	17,500,000 Pa, 20,000,000 Pa (2,538 psi)
Rotational speed (rpm)	970 - 970
Torque (Nm)	610 - 610 690 - 690
Displacement	397 cm³ (13.42 US fl oz)
