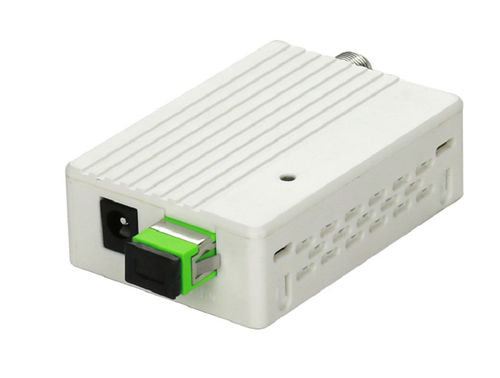

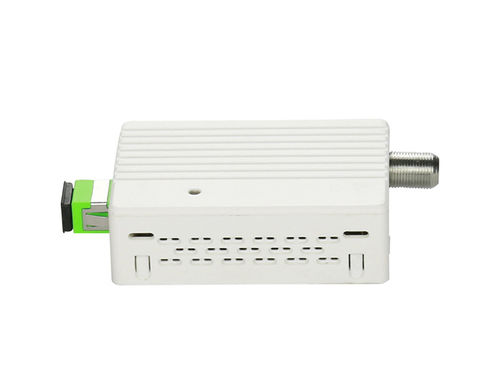

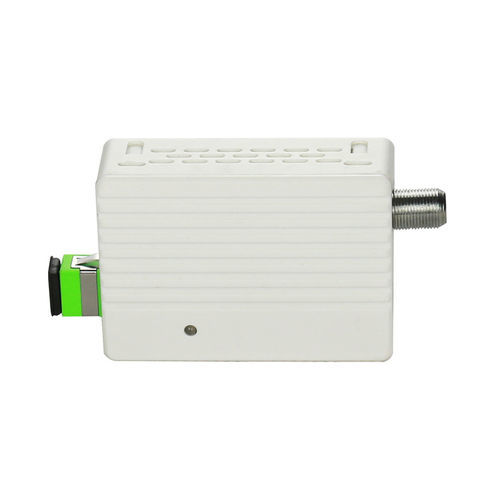

The WS-OR18 FTTH optical receiver is a home-use optical receiver for FTTH (Fiber to the Home) network optical fiber access terminals to enable analog or digital signals to enter the home. The machine uses low-power photodetectors, GaAs and optical AGC technology to meet the fiber-to-the-home CATV reception needs.

● High quality plastic shell, through hole design on both sides, with good heat dissipation.

● RF channel full GaAs low noise amplifier circuit. The digital signal satisfies -18dBm reception and the analog signal satisfies -10dBm reception.

● With optical input AGC function (AGC range can be customized).

● Anti-high frequency surge protection GaAs amplifier tube.

● Low-power design, high-efficiency switching power supply ensures high reliability and high stability of the power supply. The overall power consumption is only 2W, with optical detection circuit.

● SC/APC & SC/PC&FC/APC&FC/PC optical connectors, custom male or fe-male RF connector.

● Multi-stage lightning protection device (TVS transient suppression diode), lightning protection system is tight, ensuring the safe operation of the equipment.

● Different MER values and output levels, there are four program configurations to meet different network design requirements.

Parameter Name	Parameter Value
Type	digital analog optical
Interface type	FTTH
Other characteristics	low-power
