VISION SYSTEMS
SAPLI Powder Fill offers customized solutions for quality control and defects detection at the main production stages by Artificial Vision systems. The quality control solutions allow to eliminate risks for consumer safety and preserve the brand reputation.

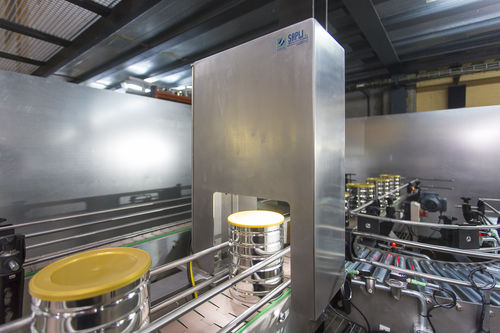

CONTAINERS INSPECTION
Containers Defects Inspection Module can be installed before or after filling process. The sensitivity for the inspection can be adjusted to fit product requirements with setting the software adjustment. All defective containers are rejected from the production line and their images are stored and an alarm is generated. For optimal security 360° inspection is available.
The main functions are:
•Confirmation of the correct can design
•Rejection of dirty and contaminated containers
•Rejection of scratched and defective containers
CAPS INSPECTION
Caps Artificial Vision Inspection Module is installed after the capping process. The inspection features can be adjusted depending on product formats range and the production requirements. The mains points to be inspected:
•Correct closure position
•Caps colour
•Cap model, shape and format
•Rejection of defective, dirty and scratched caps
•Rejection of no oriented spoon caps in relation to the can’s front side
SPOON INSERTION INSPECTION
The inspection module can control the follow aspects:
•Presence/Absence of the spoon
•Deformed or broken spoon
•Double or multiple spoons
•Detection by design and colour
Also able to detect and inspect transparent spoons.
Rejection function. Storage of pictures and statistics
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Technology |
optical
|
| Applications |
|
