System for Surface Inspection and Fault Detection of weld seams; laser based function principle.
Applications

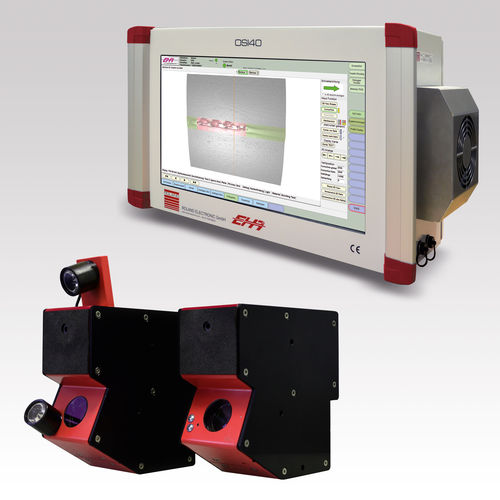

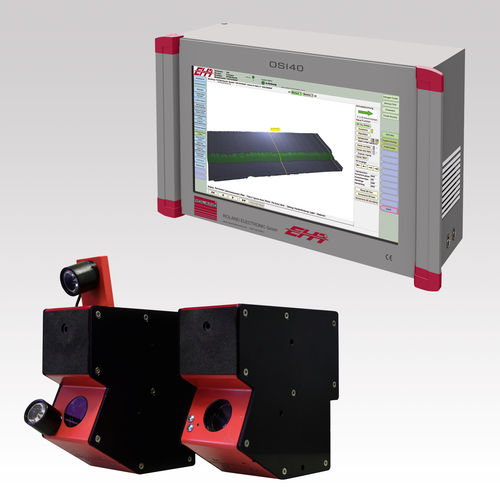

The System OSI40 was designed for Surface Inspection and Fault Detection with 3D-Laser sensors and EHR® AluCheck 2D/3D Sensors.
Suitable applications are Weld Seam Inspection, Geometry Inspection, Pore Inspection, Crater and Crack Testing. The system consists of the operation computer equipped with the proven TIVIS® software and the proper sensor system.
In addition, the system is able to control a linear axis of Nanotec type. This leads to a cost- effective mechanization of the measurement procedure.
The TIVIS® software was developed by the EHR® company for the video inspection of stamped parts in high-speed punch presses.
TIVIS® is the acronym for “Tool Integrated Vision System“ and it covers meanwhile a wide range of measuring and inspection tasks, for example the automated at testing of welds seams on automotive parts or at measuring machines for serial production parts.
Features
Compact design
Full HD graphics resolution
For Weld Seam Geometry Inspection, Pore Inspection, Crater and Crack Testing
Operating computer for TIVIS®
For the connection of EHR® AluCheck components
For the connection of standard laser triangulation sensors
Fieldbus interface
Interface for 1 axis drive
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Technology |
optical
|
| Type |
surface
|
