Optical inspection system CALIPRI C11/C15

Optical inspection system CALIPRI C11/C15

Optical inspection system CALIPRI C11/C15

About

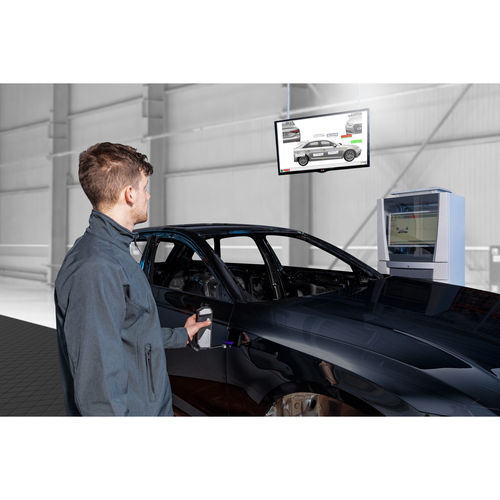

CALIPRI C11 and CALIPRI C15 are hand-guided gap & flush measuring system for taking continuous inline measurements .

The systems are designed for extremely simple operation and most accurate results. Choosing CALIPRI means you can rely on a high-precision measuring system in your production line. The device uses the patented Calipri principle, a latest-generation laser light section technology with tilt and pitch correction that is the only one of its kind in the world. With just a short swiveling motion, the user can capture the entire profile of a gap from multiple perspectives, thus eliminating the need for imprecise mathematical approximations. The measurement results are then displayed on a visualization monitor, where deviations in tolerance are highlighted in color.

You have the choice: The wireless Calipri C15 systems with or without trolley for flexible use, or the stationary Calipri C11 systems with linear or 360° cable routing.



PARAMETERS

Parameter Name Parameter Value
Technology
  • optical
  • laser triangulation
  • 2D
Operational mode
manual
Applications
for the automotive industry
Type
  • for flush measurement
  • for gap measurement
Other characteristics
  • rugged
  • in-line
