The Zalkin ZC-PRISM offers multiple detection capabilities to help increase line efficiencies.

The new Zalkin Pre-Inspection & Sorting Module has been developed for high speed detection and control of defective caps.

The module can be integrated on new lines or retrofitted to existing lines.

The ZC-Prism is ideal for multiple industries and applications using flat caps.

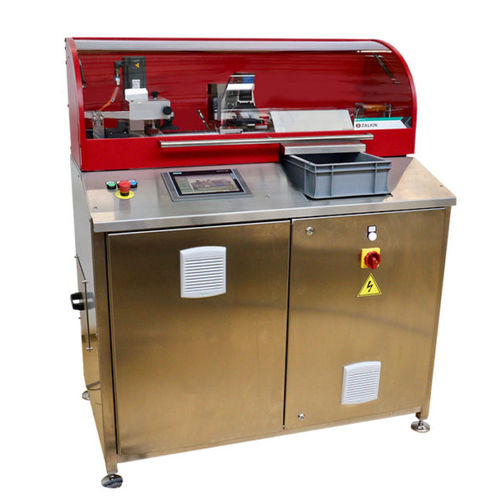

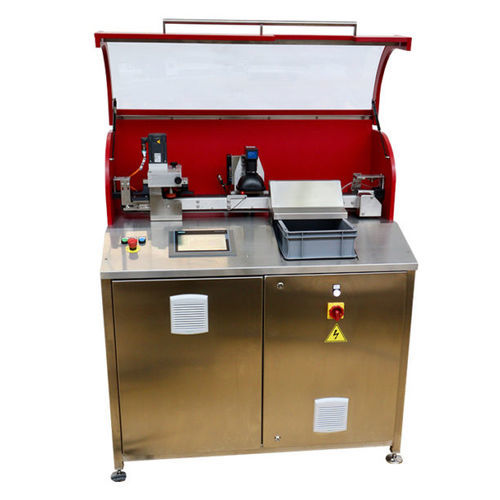

ZC-PRISM Closure Inspection & Rejection Module

• Designed for flat plastic caps
• Up to 2,000 cpm (120,000 cph)
• Integrated in Zalkin closure delivery system (between cap orienter & capper or cap orienter & buffer)
• Capable of inspection of multiple defects and rejection of defective closures
• Full control with on board PLC and HMI
• Increased line efficiencies
• Reduced product and packaging waste
• Robust and easy-to-maintain design

Integrated in Zalkin closure delivery system between cap orienter & capper or cap orienter & buffer

Inspection:
• Single camera station (oriented in vertical and perpendicular or transversal)
• Cap defect detection includes:
• mis-shaped caps
• deformed caps
• cap color variation
• upside down caps
• missing tamper band
• deformed plug seal
• contaminants

Parameter Name	Parameter Value
Technology	optical
Sector	for the beverage industry
Other characteristics	defect sorting
Height inspection range	Min.: 5 mm (0 in)Max.: 40 mm (2 in)
